High-Resolution Sonography Redefines Hand Surgery Diagnostics

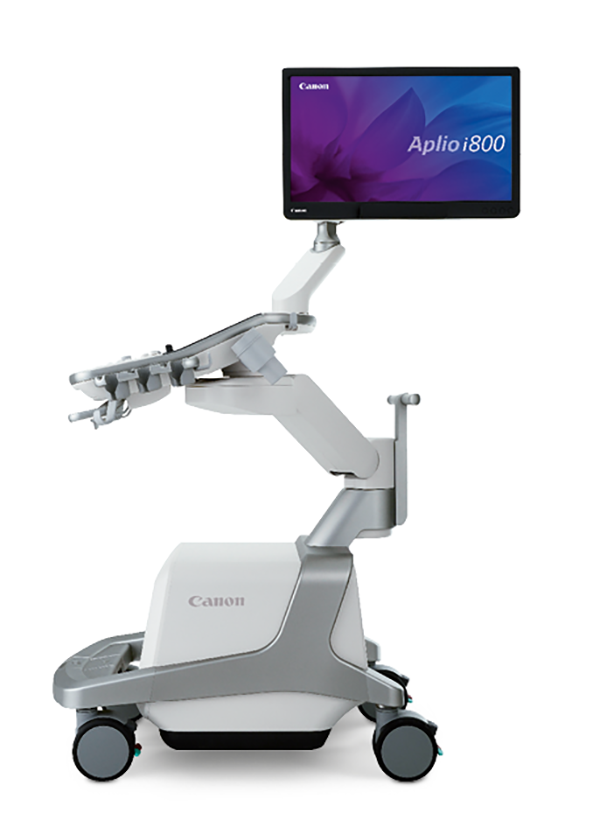

The Handchirurgie Seefeld (hand surgery) clinic in Zürich, Switzerland, relies on high-tech medicine with the state-of-the-art Aplio i800 ultrasound diagnostic system of Canon Medical.

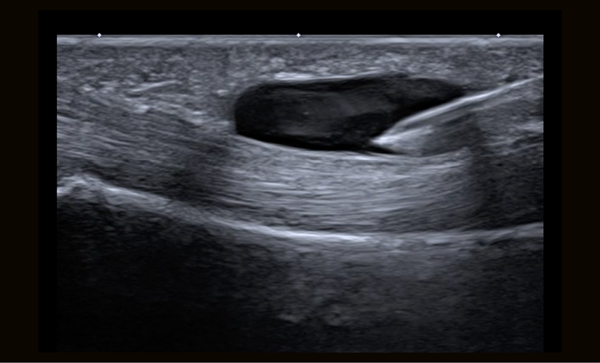

The extremely high resolution of the sonography system provides valuable support even for ultrasound-controlled interventions. The most common indication in hand surgery is stenosing tenosynovitis. This imbalance between the annular pulley width and flexor tendon thickness may result in clicking of the affected finger. When attempting non-operative treatment, a cortisone injection can even be given with ultrasound support. This results in a lower rate of side effects due to more precise placement of the needle in the digital canal. However, the method only really comes into play in the event of differentiated hand surgery interventions such as occult wrist ganglions, which are “destroyed” under sonographic guidance, so in many cases the complaints can be permanently eliminated even without surgery. “In these special cases, the immense spatial resolution even allows for targeted ultrasound-controlled anaesthesia of the nerve supplying the wrist joint capsule, which makes this a pain-free intervention. Even minimally-invasive carpal tunnel operations can now be done under sonographic guidance.”

Another example for the usefulness of high-resolution ultrasound can be seen in the case of post-operative complications. Implant protrusions, which may occur occasionally after surgery on radial fractures, for example, may cause irritation of adjacent flexor and extensor tendons. This often results in an extensor tendon rupture, usually of the long extensor tendon in the thumb. “The ideal method for localising any implant-related complications of this kind is ultrasound”, says Dr. Kluge. In these cases, CT shows the implant protrusion but not the soft tissue trauma caused, while in an MR scan the soft tissue injury is frequently covered by metal artefacts. “In this case, sonography allows for optimum differentiation of bone surface, soft tissue and implant – in high resolution”, Dr. Kluge summarised.

“We not only have a responsibility to the patient, but also to our colleagues.” Patients are also repeatedly referred by fellow hand surgeons for ultrasound diagnosis – usually with very precise and differentiated problems. “In this case in particular, the expectations of a precise diagnosis are extremely high, because our colleagues base their further treatment on this diagnosis”, said Dr. Kluge.

“An accelerated workflow is just as important for us as comprehensive clinical examination is for our patients. Suspected clinical diagnosis are often able to be confirmed or excluded during the initial consultation thanks to the sonography.

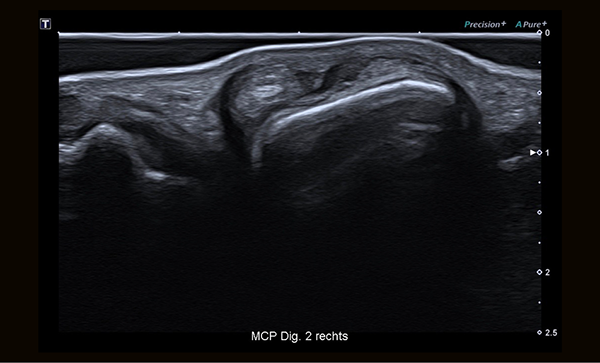

In many cases, there is absolutely no need for additional imaging procedures such as CT and MR, which in the latter case also results in cost reductions and reduced radiation for the patient from CT”, the hand specialist explains. Thanks to the iDMS (intelligent Dynamic Micro-Slice) function of the matrix probes from Canon Medical, the crystal elements can be aligned so that a very narrow and focus-independent sound field is produced. “This “sharpening (of) imaging slice thickness” makes it possible to focus on even the smallest joint spaces between individual carpal bones”, stresses Dr. Kluge.

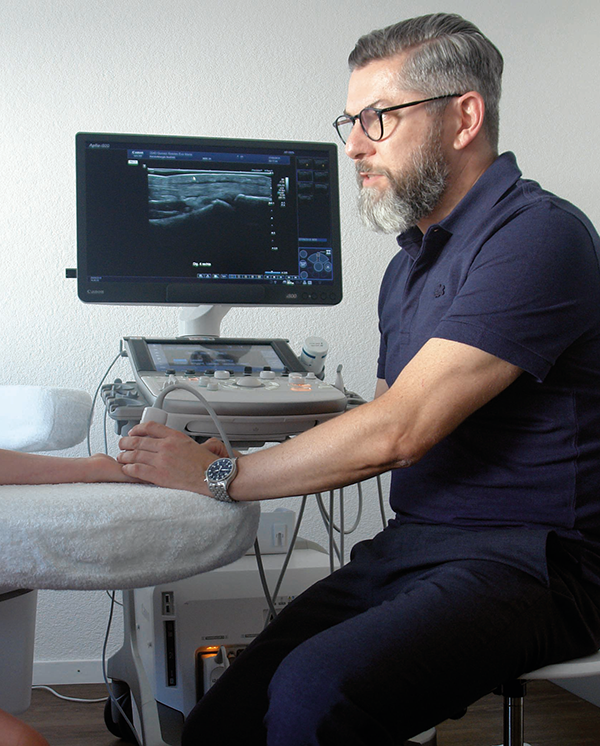

Sonographic imaging has played a key role in the life of doctor and passionate music lover Sebastian Kluge for around 20 years, and to some extent he thinks of it as a work of art. He has been using it for a good 15 years as a hand surgeon and knows that “this diagnostic technology offers enormous opportunities that have by no means been exhausted yet”. He looks forward to the next developments, which he is monitoring keenly. He has already been able to scrutinise the Aplio i800 in advance as part of his own advanced training events.

He thinks there is great potential in the further definition of software algorithms and image processing, and also in the further miniaturisation of the systems. He said “making high tech ultrasound systems like the Aplio i800 from Canon Medical portable would be a vision that would be worth achieving in many respects, not least because it would mean that high-frequency imaging could even be used in ultrasound-guided operations on the hand without having to be tied to a single operation site.” //

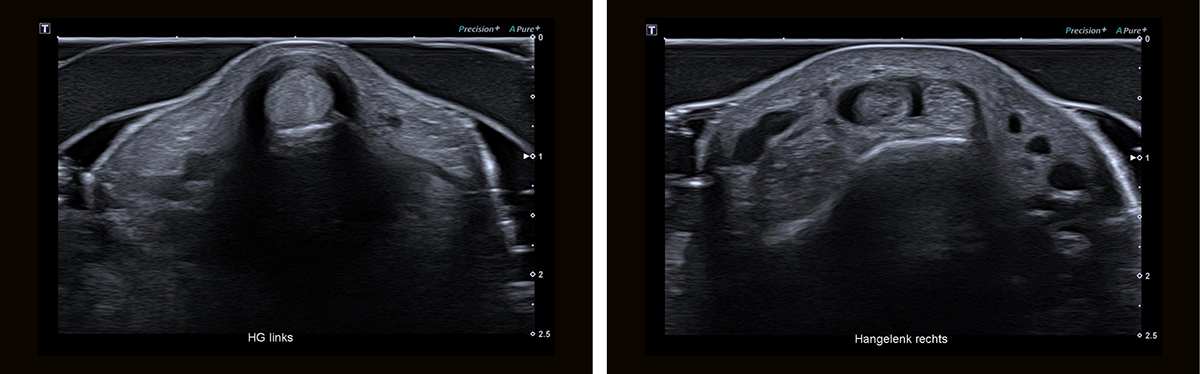

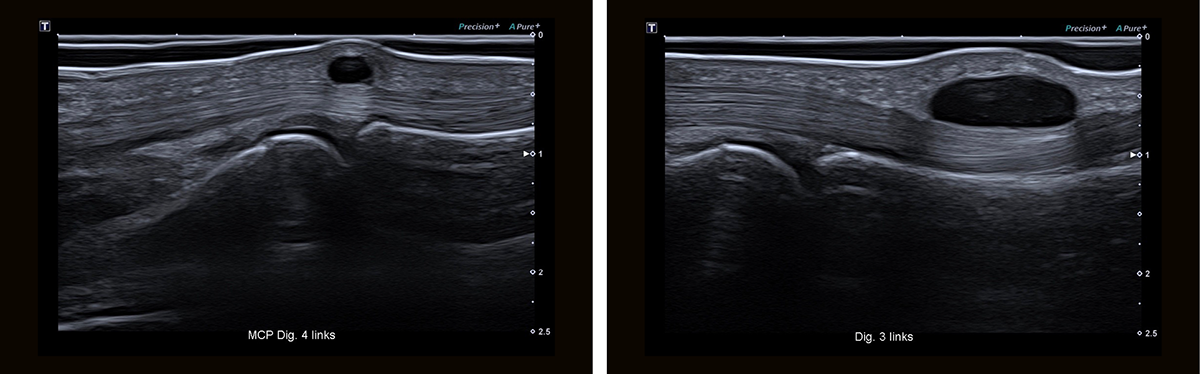

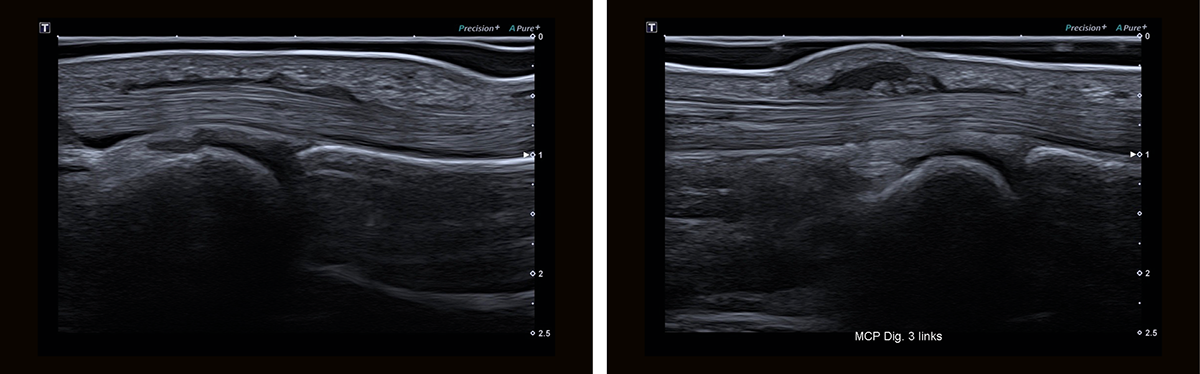

Stenosing tenosynovitis. This is one of the most common conditions in the hand. In addition to primary causes such as the thickening of the A1 annular tendon at the level of the joint at the base of the finger (left), the condition can also be caused by synovitis of the flexor tendons. Subcutaneous Dupuytren's nodules can also radiate into the digital canal or the A1 annular pulley and result in a secondary constriction of the digital canal (right). A differentiation, which is relevant for the therapeutic approach, can be made reliably using sonography.

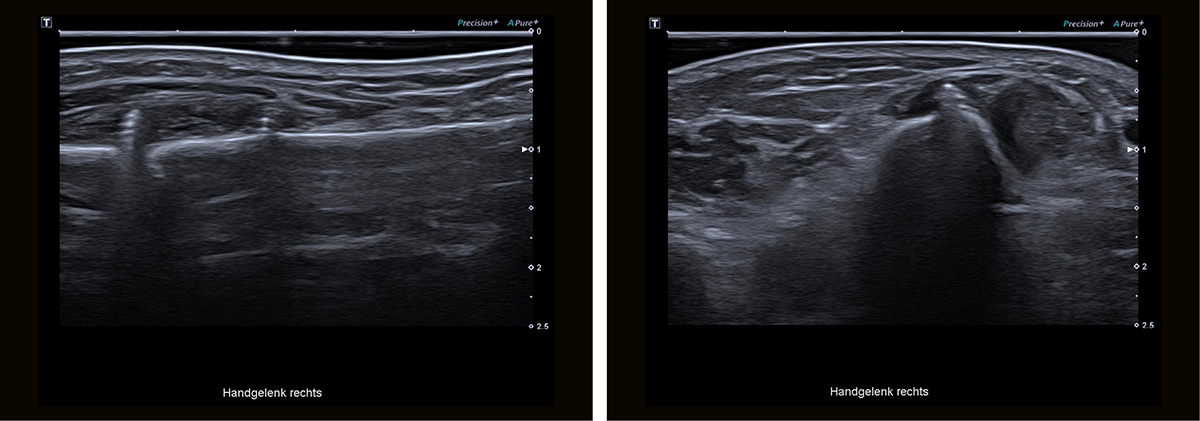

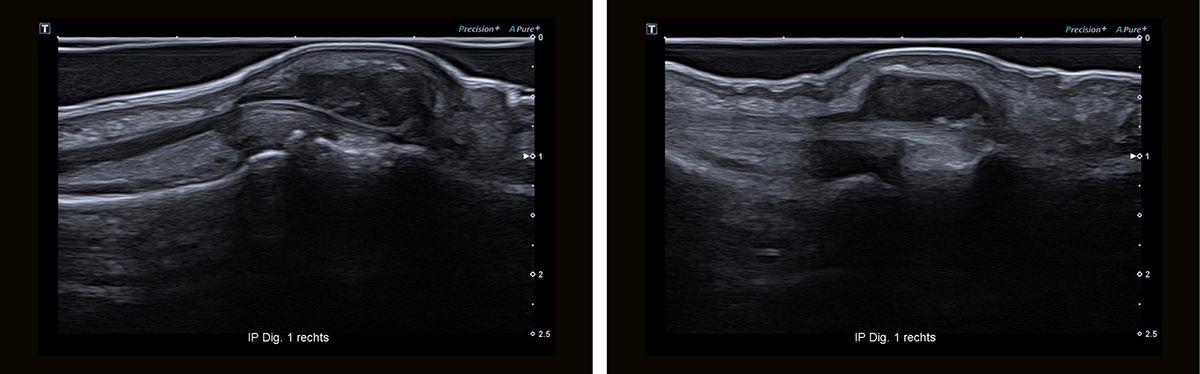

De Quervain's tenosynovitis. This is an entrapment syndrome of the first extensor tendon compartment. The tendons of the abductor pollicis longus and extensor pollicis brevis muscles are compromised and can barely be differentiated from each other as individual structures anymore, while the extensor retinaculum displays a halo-like thickening (left). Some patients present with an additional partition of the first extensor tendon compartment (subsheath), which can also be easily distinguished using sonography (right). Knowledge of this is important for treatment, as patients with a subsheath do not respond as well to non-surgical treatments.

Implant-related complications. Postoperative complications caused by osteosynthesis materials which have been inserted are not uncommon. In the case of radial fractures treated using surgery in particular, prominent plate designs or excess screw length may result in irritation and a rupture of the flexor and extensor tendons. In this situation, the diagnostic advantage of sonography in comparison with CT relates to the simultaneous presentation of the cortex, relevant implant protrusion and soft issue, and the advantage over MRI relates to the absence of metal artefacts.
