Abdomen and Pelvis

Aquilion Exceed LB

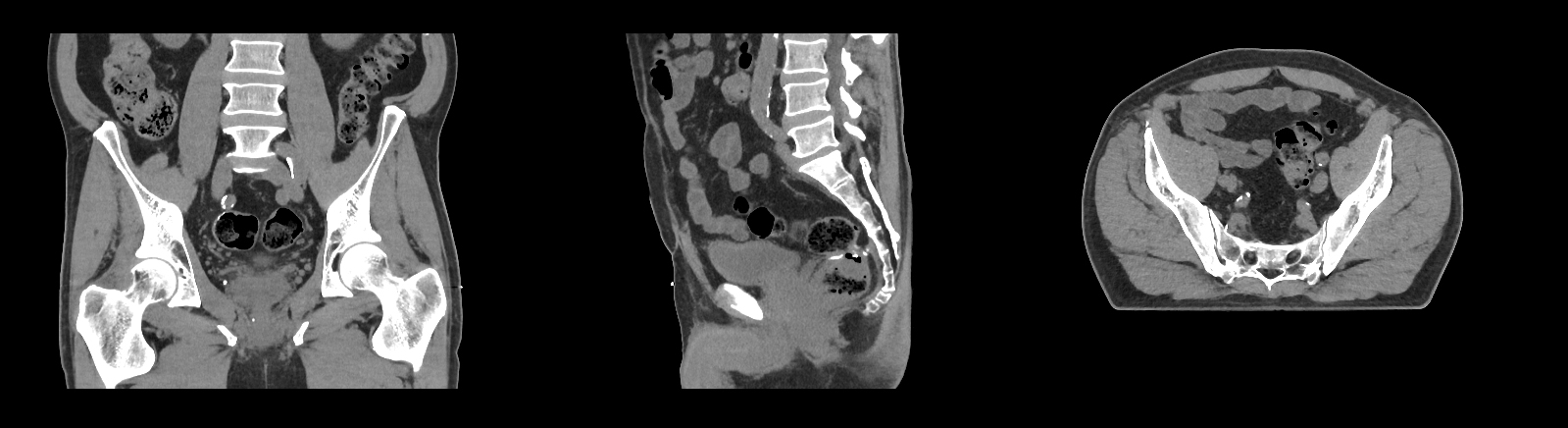

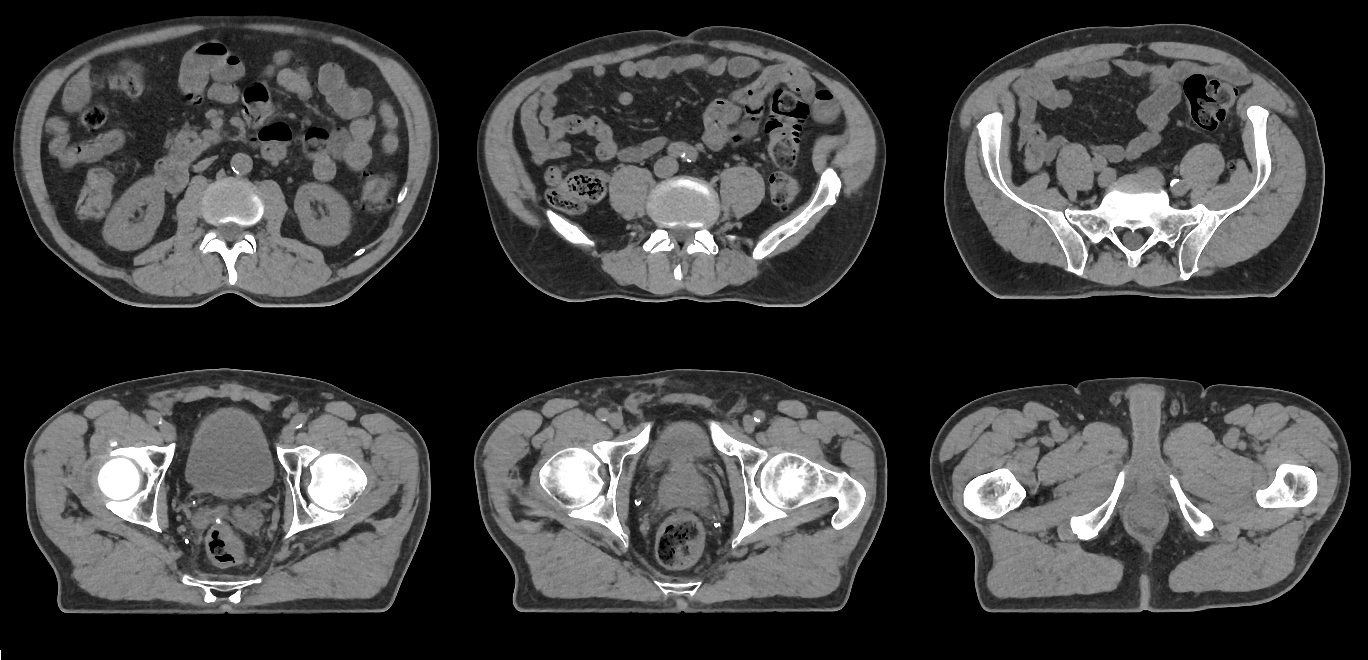

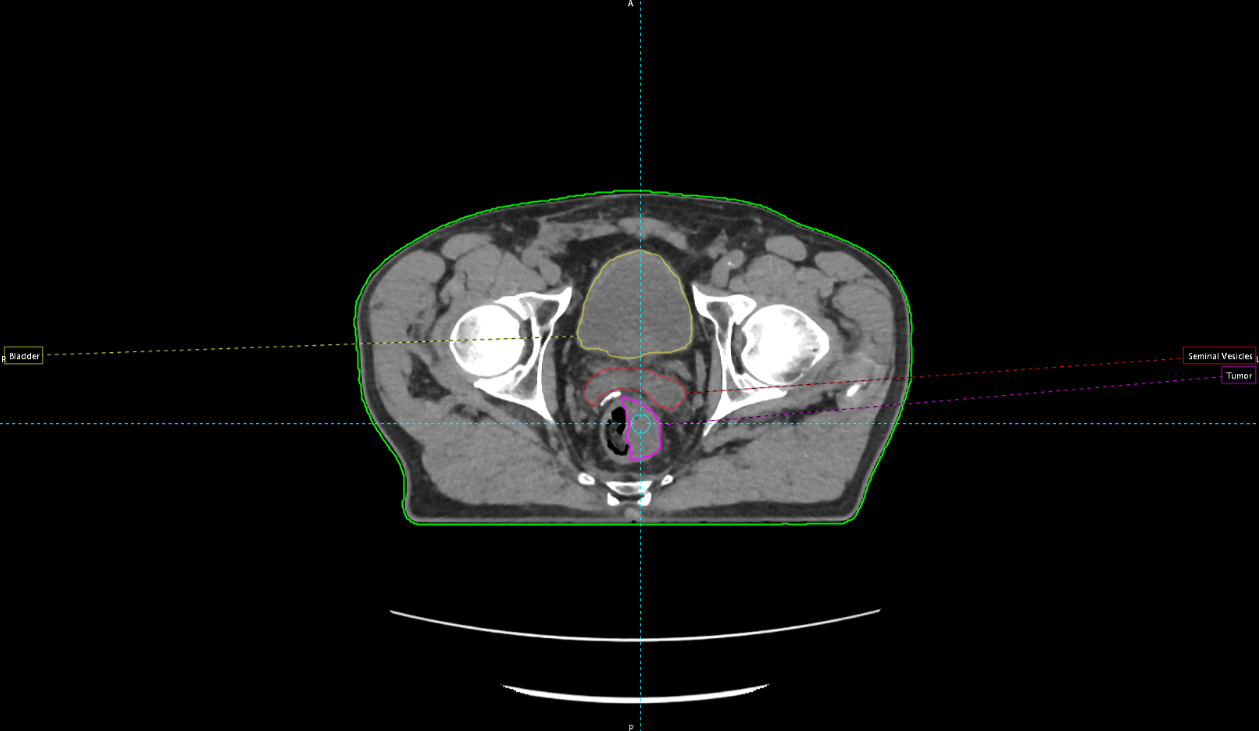

This patient presented for a CT simulation scan for colon cancer. Advanced intelligent Clear-IQ Engine (AiCE) images improve contrast resolution facilitating accurate contouring.

Courtesy Radiotherapeutic Institute Friesland, the Netherlands

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.5 mm x 80
kVp 120
mAs SUREExposure
Rotation Time 0.5 s
Scan Range 320 mm
Dose Reduction AiCE
CTDIvol 10.1 mGy
DLP 369.1 mGy·cm
Effective Dose 5.54 mSv
k-factor 0.015 (AAPM Report 96)
Aquilion Exceed LB Abdomen and Pelvis
Aquilion Exceed LB Abdomen and Pelvis
Aquilion Exceed LB Abdomen and Pelvis
Aquilion Exceed LB Abdomen and Pelvis
Aquilion Exceed LB Abdomen and Pelvis
Aquilion Exceed LB Abdomen and Pelvis
× 拡大画像

Prostate with Gold Fiducial markers

Aquilion Exceed LB

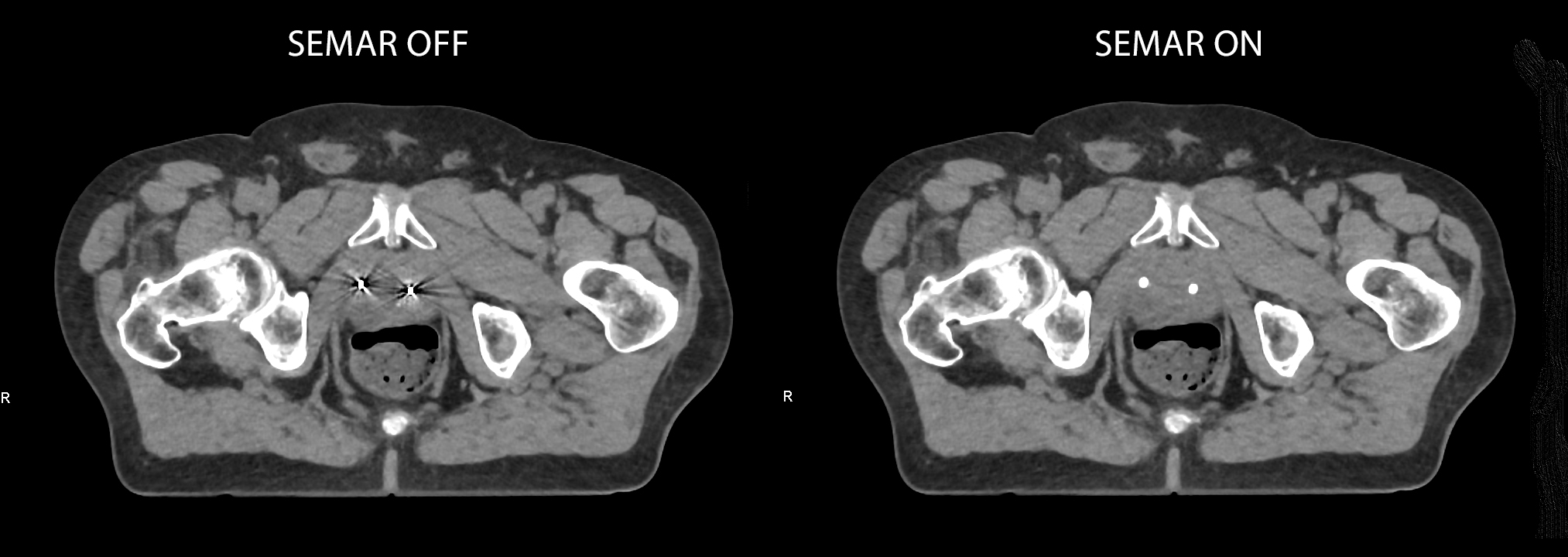

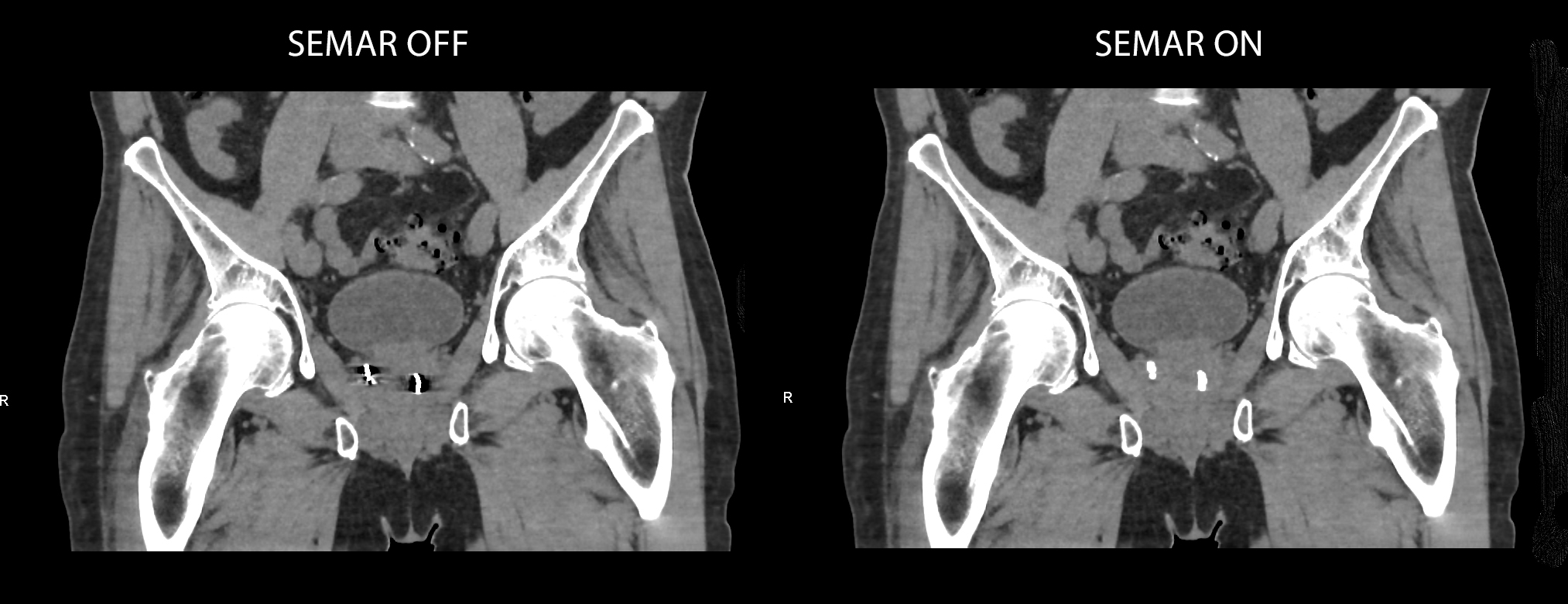

This patient underwent a CT scan for simulation. Gold Fiducial markers are seen in the prostate. SEMAR reduces the artifact caused by the markers.

Courtesy Radiotherapeutic Institute Friesland, the Netherlands

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.5 mm x 80
kVp 120
mAs SUREExposure
Rotation Time 0.5 s
Scan Range 274 mm
Dose Reduction AiCE
CTDIvol 9.9 mGy
DLP 317.3 mGy·cm
Effective Dose 5.39 mSv
k-factor 0.017 (AAPM Report 96)
Aquilion Exceed LB Prostate with Gold Fiducial markers
Aquilion Exceed LB Prostate with Gold Fiducial markers
Aquilion Exceed LB Prostate with Gold Fiducial markers
Aquilion Exceed LB Prostate with Gold Fiducial markers
× 拡大画像

Chest and Upper Abdomen

Aquilion Exceed LB

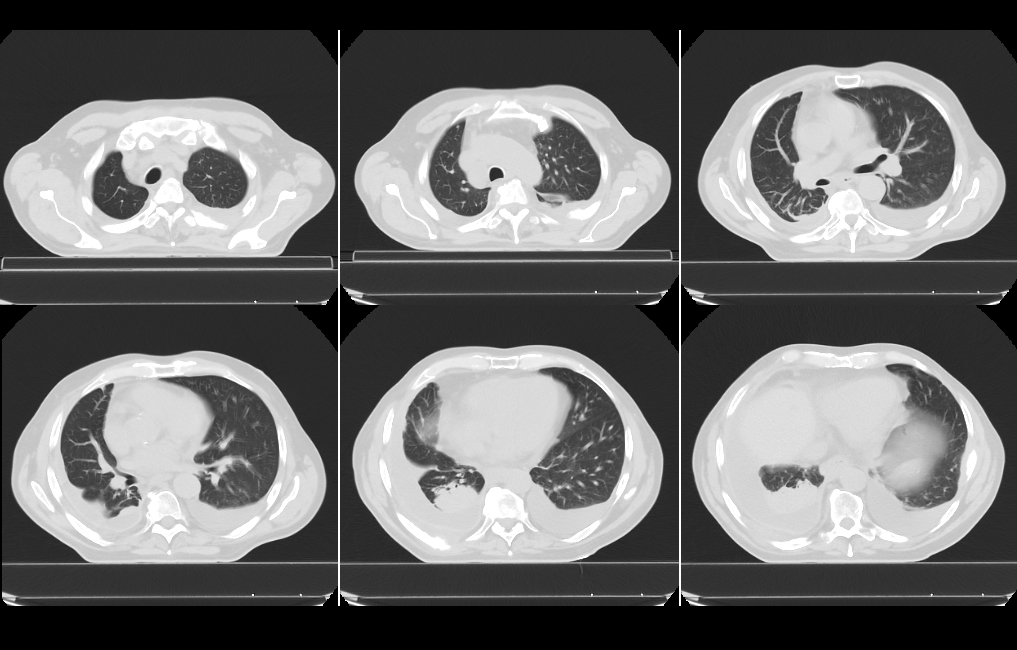

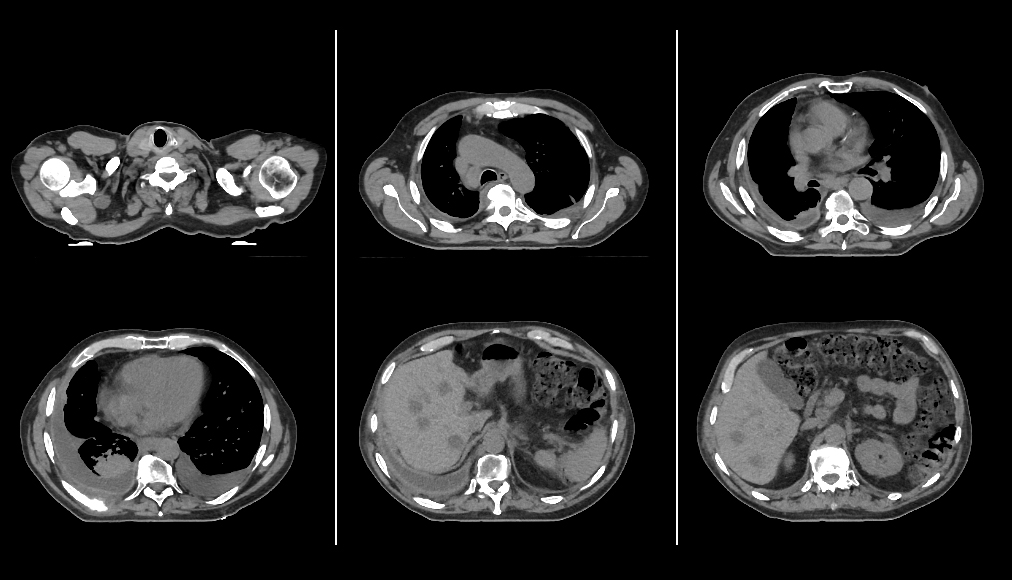

A CT simulation scan of the chest and abdomen was performed with free breathing. AiCE reconstructions demonstrate low noise, improved image texture for improved lesion detection.

Courtesy Radiotherapeutic Institute Friesland, the Netherlands

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.5 mm x 80
kVp 120
mAs SUREExposure
Rotation Time 0.5 s
Scan Range 366 mm
Dose Reduction AiCE
CTDIvol 9.9 mGy
DLP 408.1 mGy·cm
Effective Dose 5.71 mSv
k-factor 0.014 (AAPM Report 96)
Aquilion Exceed LB Chest and Upper Abdomen
Aquilion Exceed LB Chest and Upper Abdomen
Aquilion Exceed LB Chest and Upper Abdomen
Aquilion Exceed LB Chest and Upper Abdomen
× 拡大画像

Respiratory Gated Chest

Aquilion Exceed LB

A respiratory gated scan of the chest was performed for CT simulation. Accurate contouring of the esophagus and surrounding structures can be performed easily with AiCE.

Courtesy Radiotherapeutic Institute Friesland, the Netherlands

View Scan Parameters

Scan Mode Respiratory Gated Helical
Collimation 0.5 mm x 80
kVp 120
mAs 17
Rotation Time 0.4 s
Scan Range 342 mm
Dose Reduction AiCE
CTDIvol 13.1 mGy
DLP 510.9 mGy·cm
Effective Dose 7.15
k-factor 0.014 (AAPM Report 96)
Aquilion Exceed LB Respiratory Gated Chest
Aquilion Exceed LB Respiratory Gated Chest
× 拡大画像

RT Neck

Aquilion Exceed LB

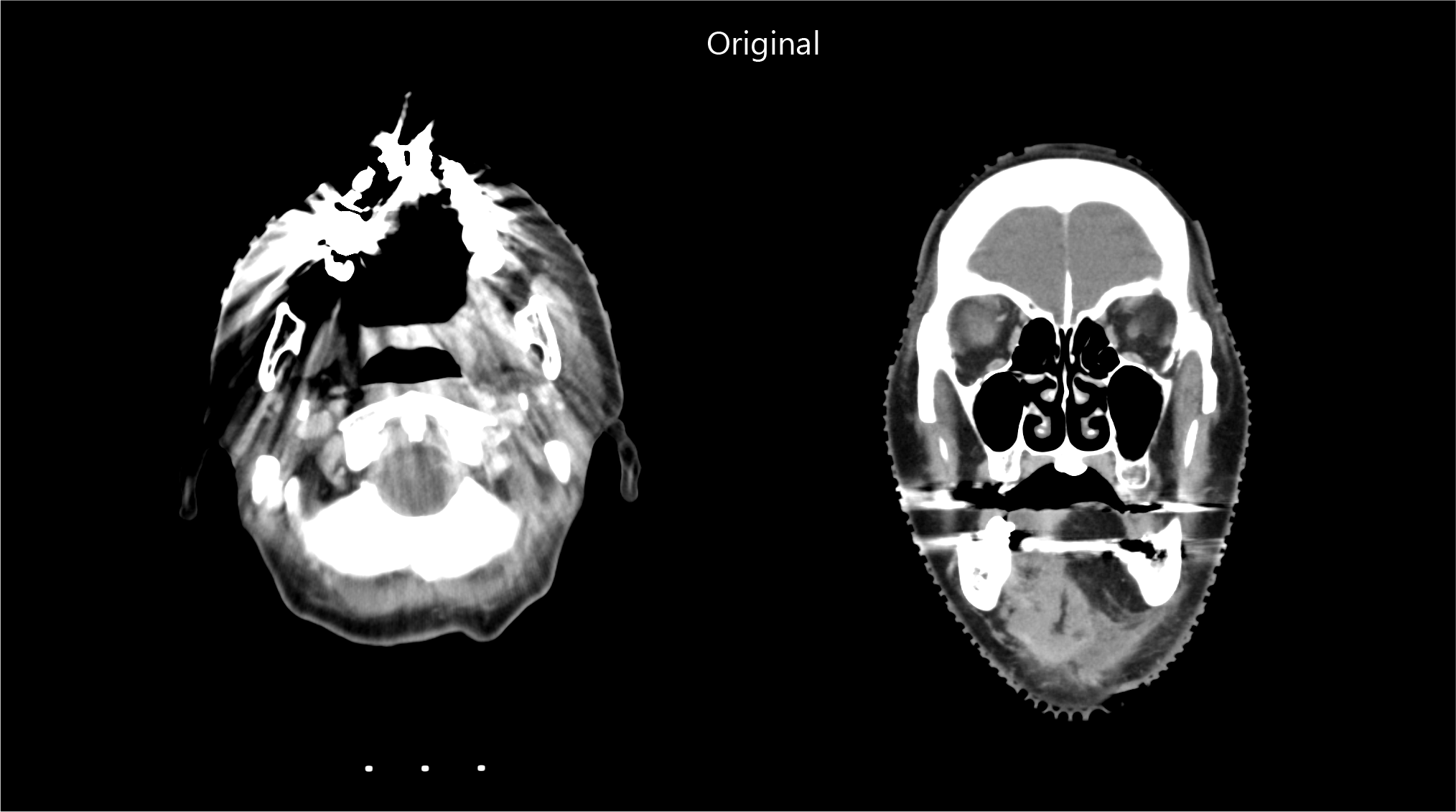

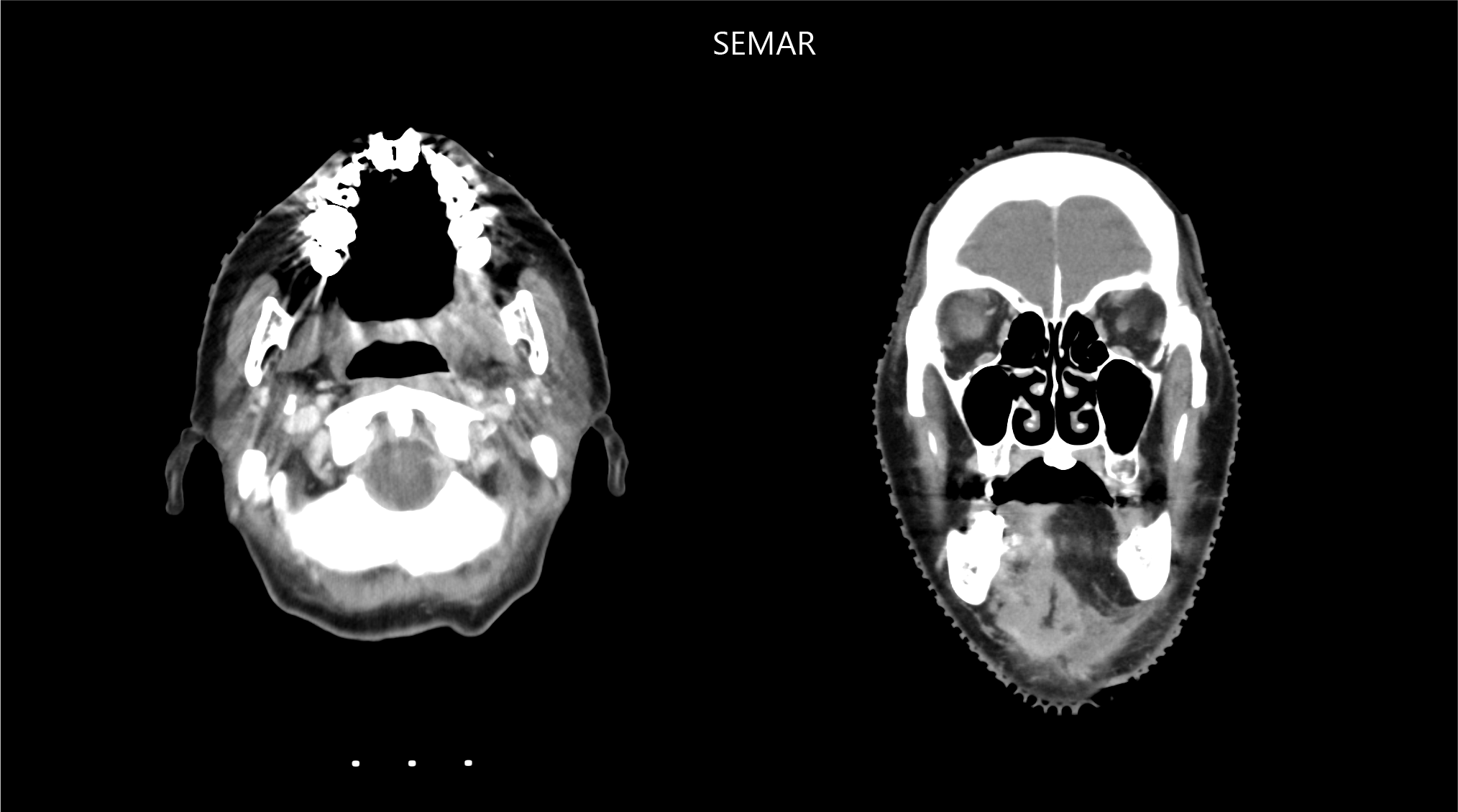

A scan of the neck was performed with the patient in the treatment position and reconstructed with AiCE and SEMAR. SEMAR reduces the artifacts from the dental fillings

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.5 mm x 80
kVp 80
mAs SUREExposure
Rotation Time 1.0 s
Scan Range 490 mm
Dose Reduction AiCE
CTDIvol 3.7mGy
DLP 197.4mGy·cm per phase
Effective Dose 8.89 mSv
k-factor 0.0059 (AAPM Report 96)
Aquilion Exceed LB RT Neck
Aquilion Exceed LB RT Neck
Aquilion Exceed LB RT Neck
Aquilion Exceed LB RT Neck
Aquilion Exceed LB RT Neck
Aquilion Exceed LB RT Neck
× 拡大画像

Liver SBRT

Aquilion Exceed LB

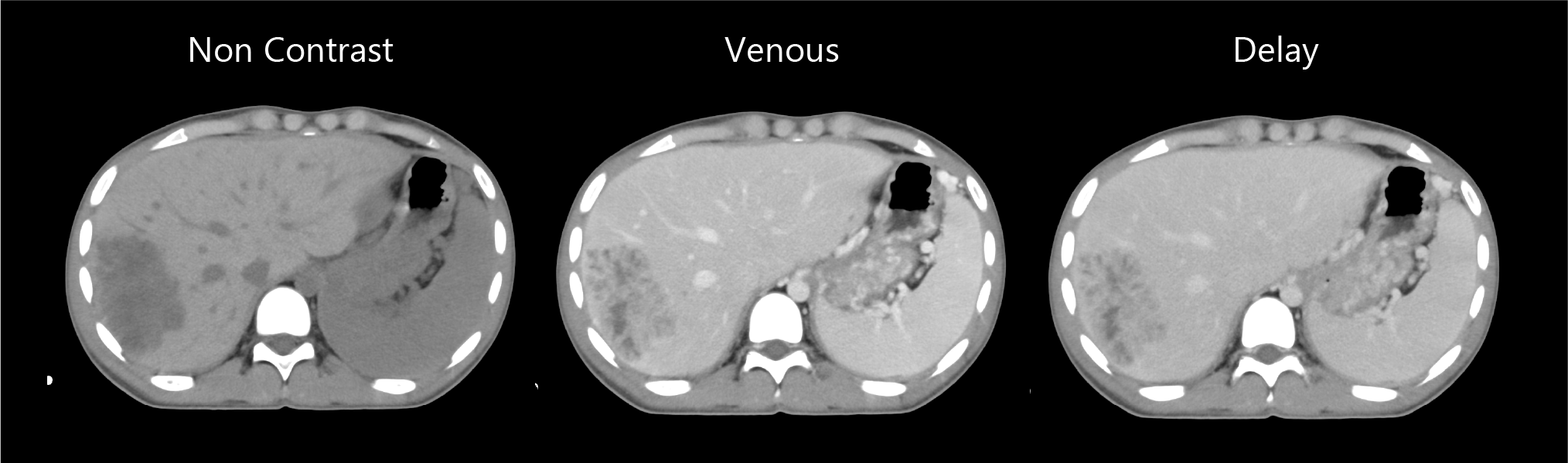

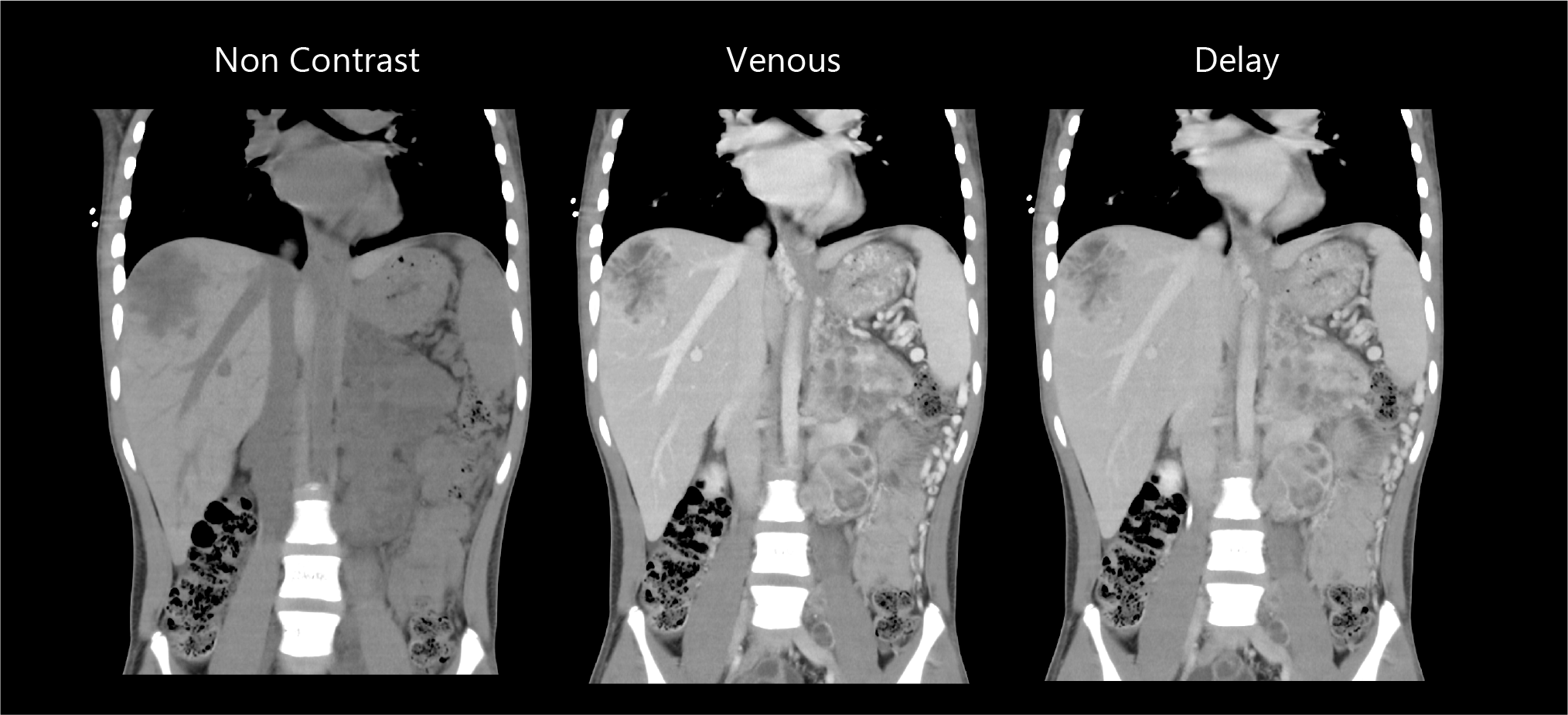

This abdomen scan was performed for stereotactic body radiotherapy treatment (SBRT) planning of the liver tumor and abdominal mass. Liver SBRT simulation require high quality images and multiphasic CT for visualization of the tumor extent in the liver. In this case AiCE reconstruction allows clear delineation of the tumor in all scan phases.

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.5 mm x 80
kVp 120
mAs SUREExposure
Rotation Time 0.75 s
Scan Range 400 mm
Dose Reduction AiCE
Aquilion Exceed LB Liver SBRT
Aquilion Exceed LB Liver SBRT
Aquilion Exceed LB Liver SBRT
Aquilion Exceed LB Liver SBRT
Aquilion Exceed LB Liver SBRT
Aquilion Exceed LB Liver SBRT
Aquilion Exceed LB Liver SBRT
Aquilion Exceed LB Liver SBRT
× 拡大画像

Respiratory Gated Chest

Aquilion Exceed LB

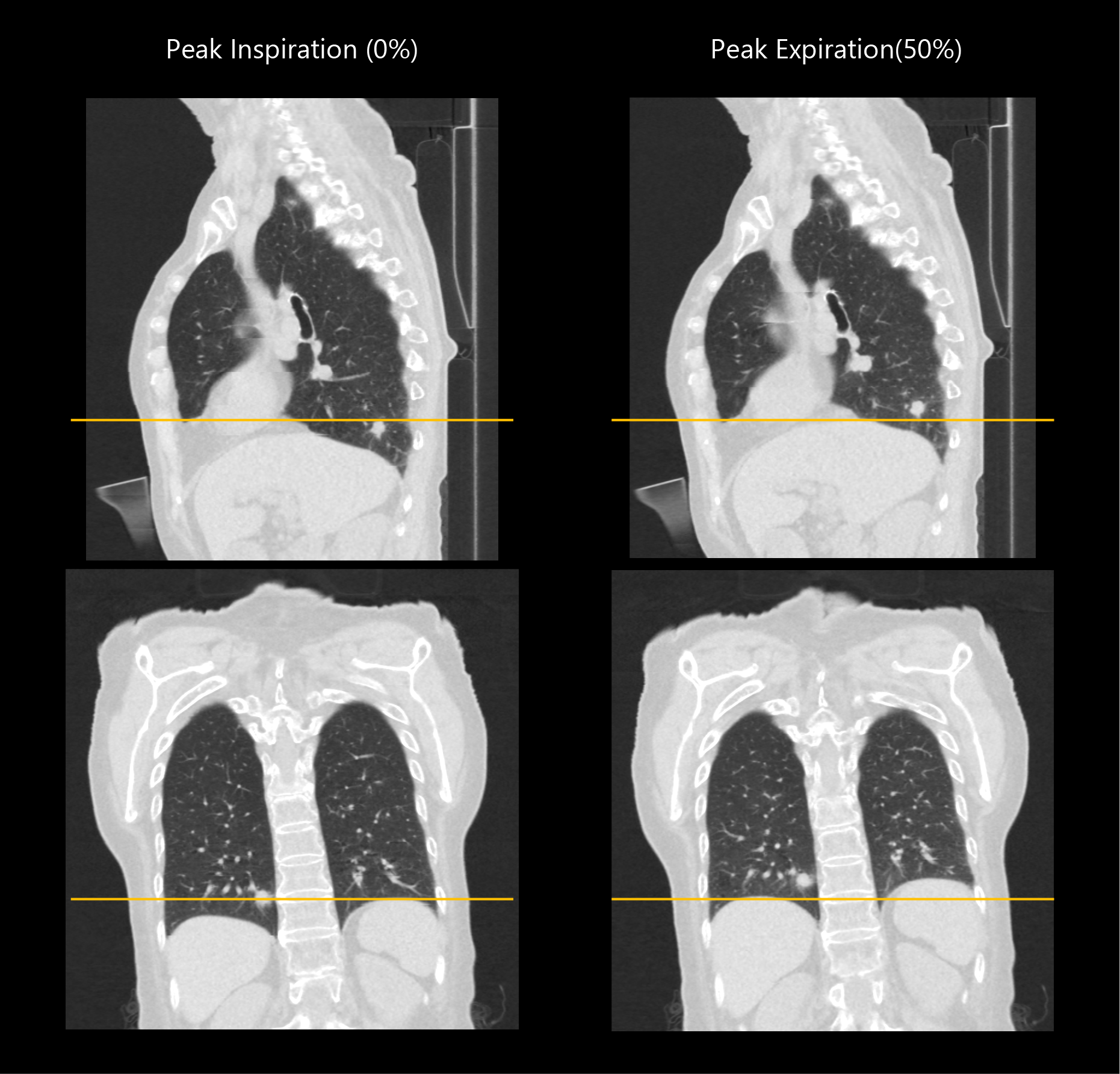

A small tumor is seen in this respiratory gated scan of the chest reconstructed with AiCE. The scan is performed while the patient is breathing in a natural rhythm. Reconstructions are made at multiple respiratory phases in order to help the physician define the range of motion of the tumor and surrounding anatomy.

Courtesy: Radiotherapeutisch Instituut Friesland; Netherlands (RIF)

View Scan Parameters

Scan Mode Ultra-Helical, RGR gated
Collimation 0.5 mm x 80
kVp 120
mAs 17
Rotation Time 0.4 s
Scan Range 350 mm
Dose Reduction AiCE
Aquilion Exceed LB Respiratory Gated Chest
Aquilion Exceed LB Respiratory Gated Chest
Chest Respiratory Gated
Aquilion Exceed LB Respiratory Gated Chest
Aquilion Exceed LB Respiratory Gated Chest
× 拡大画像

Prostate Cancer CT Simulation HDR Brachytherapy, AiCE, SEMAR

Aquilion Exceed LB

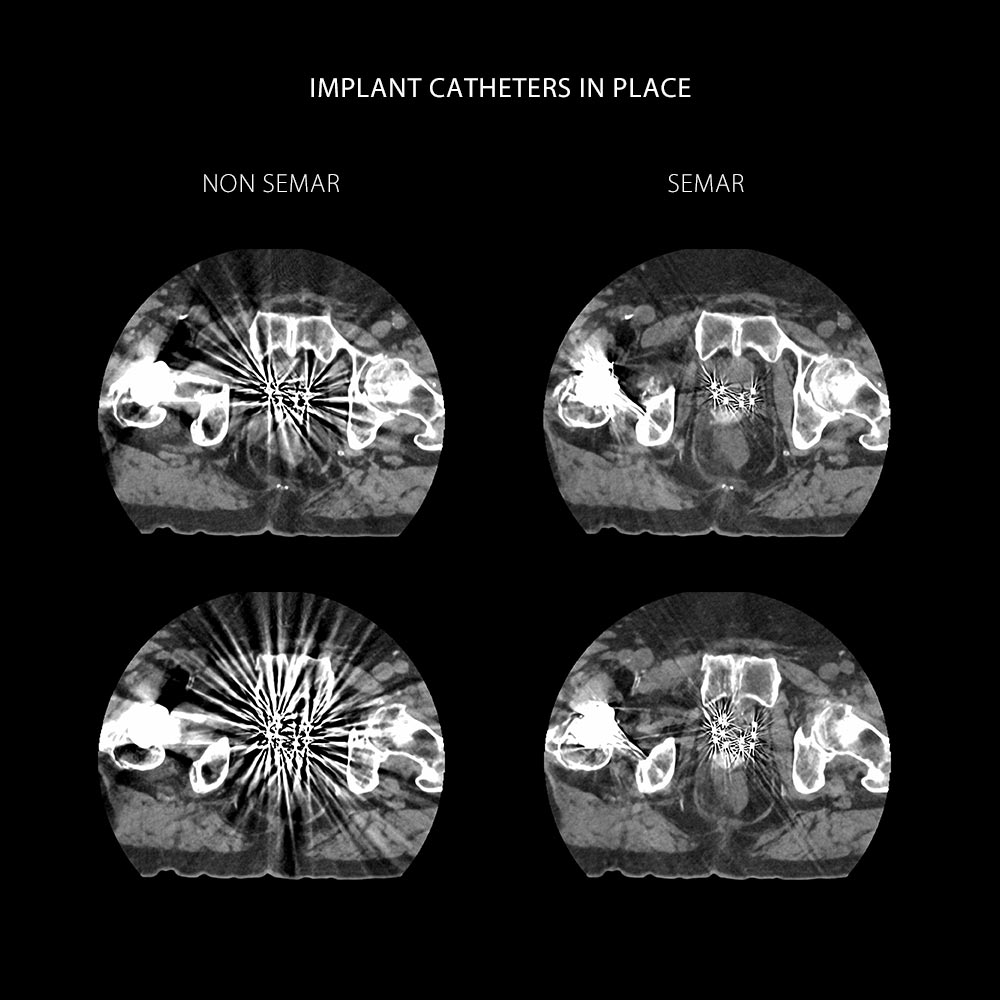

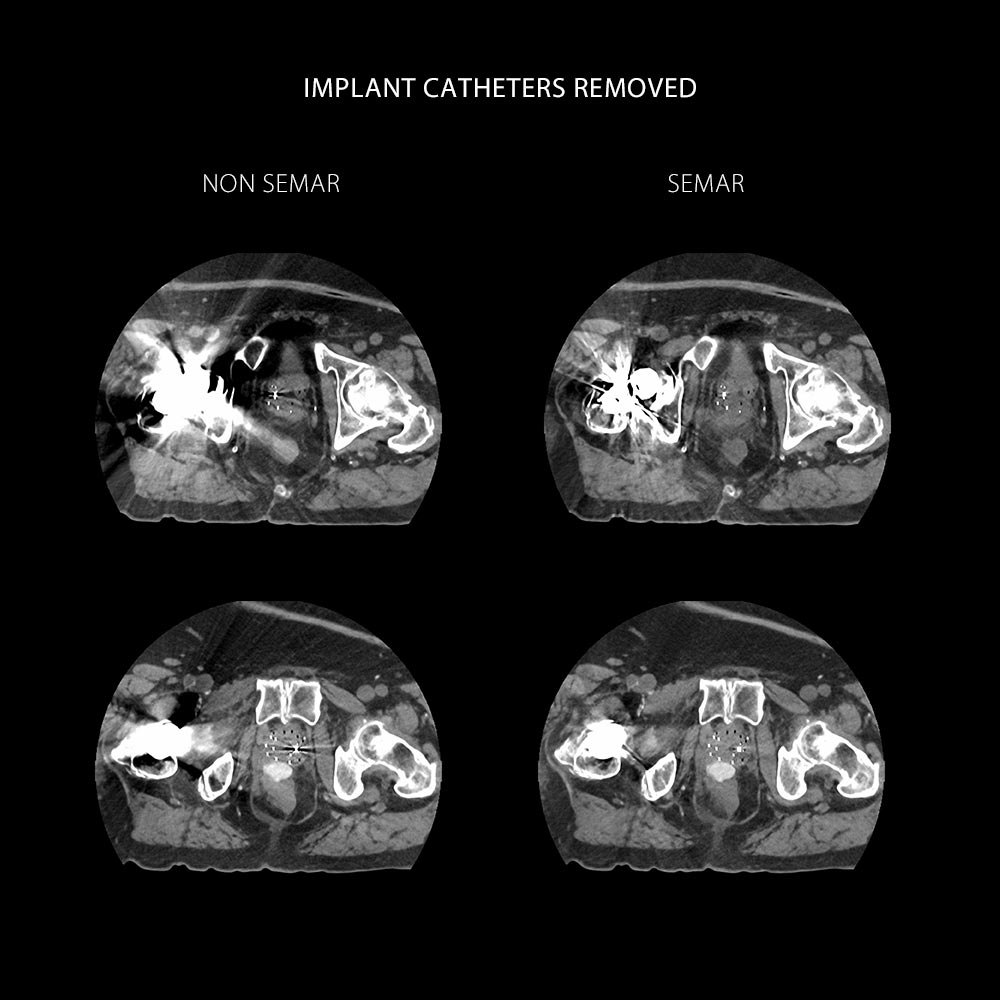

Canon's SEMAR technology minimizes metal artifact from hip replacement and HDR insertion catheters in the prostate cancer patient, allowing for better visualization of tissue edges.

View Scan Parameters

Scan Mode Helical
Collimation 0.5 mm x 80
kVp 120
Scan Range 366mm
CTDIvol 17.0mGy
DLP 647.9mGy·cm
Effective Dose 9.7mGy
k-factor 0.015 (AAPM Report 96)
Aquilion Exceed LB Prostate Cancer CT Simulation HDR Brachytherapy, AiCE, SEMAR
Aquilion Exceed LB Prostate Cancer CT Simulation HDR Brachytherapy, AiCE, SEMAR
Aquilion Exceed LB Prostate Cancer CT Simulation HDR Brachytherapy, AiCE, SEMAR
Aquilion Exceed LB Prostate Cancer CT Simulation HDR Brachytherapy, AiCE, SEMAR
× 拡大画像

Abdominal Carcinoma, AiCE

Aquilion Exceed LB

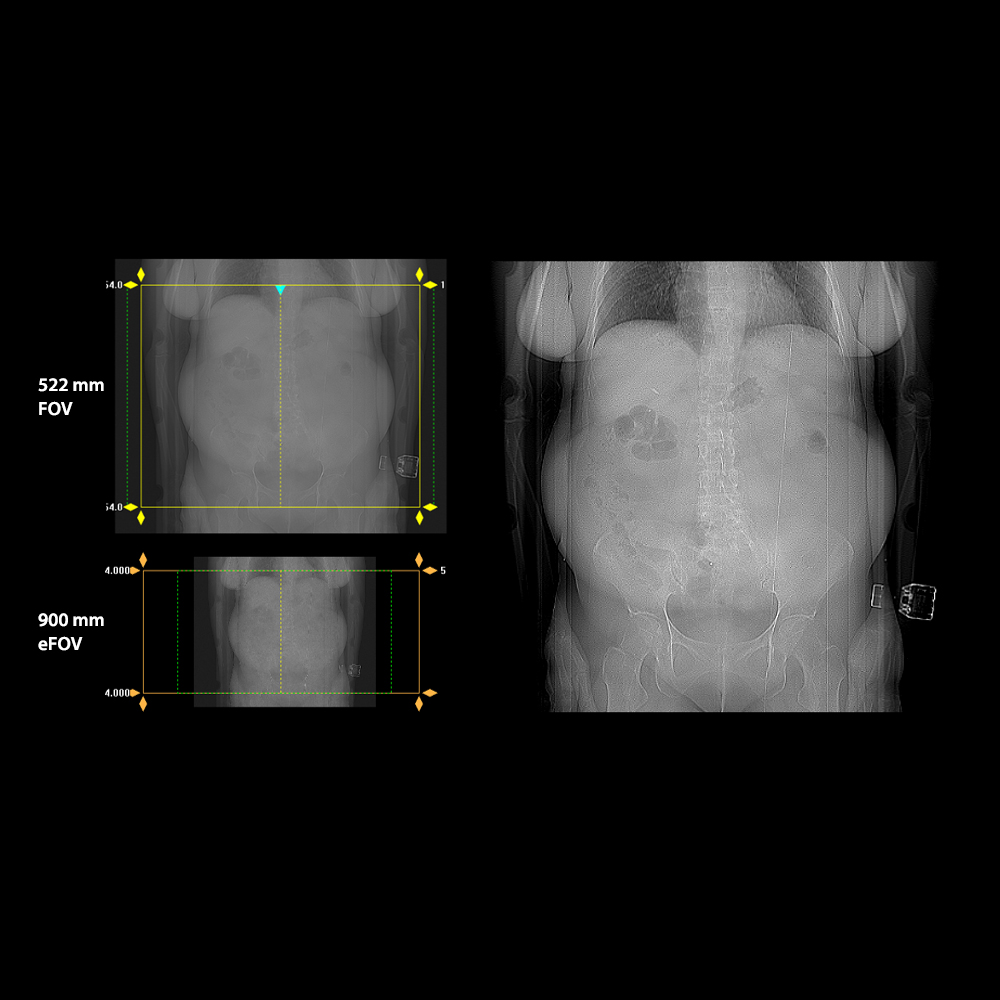

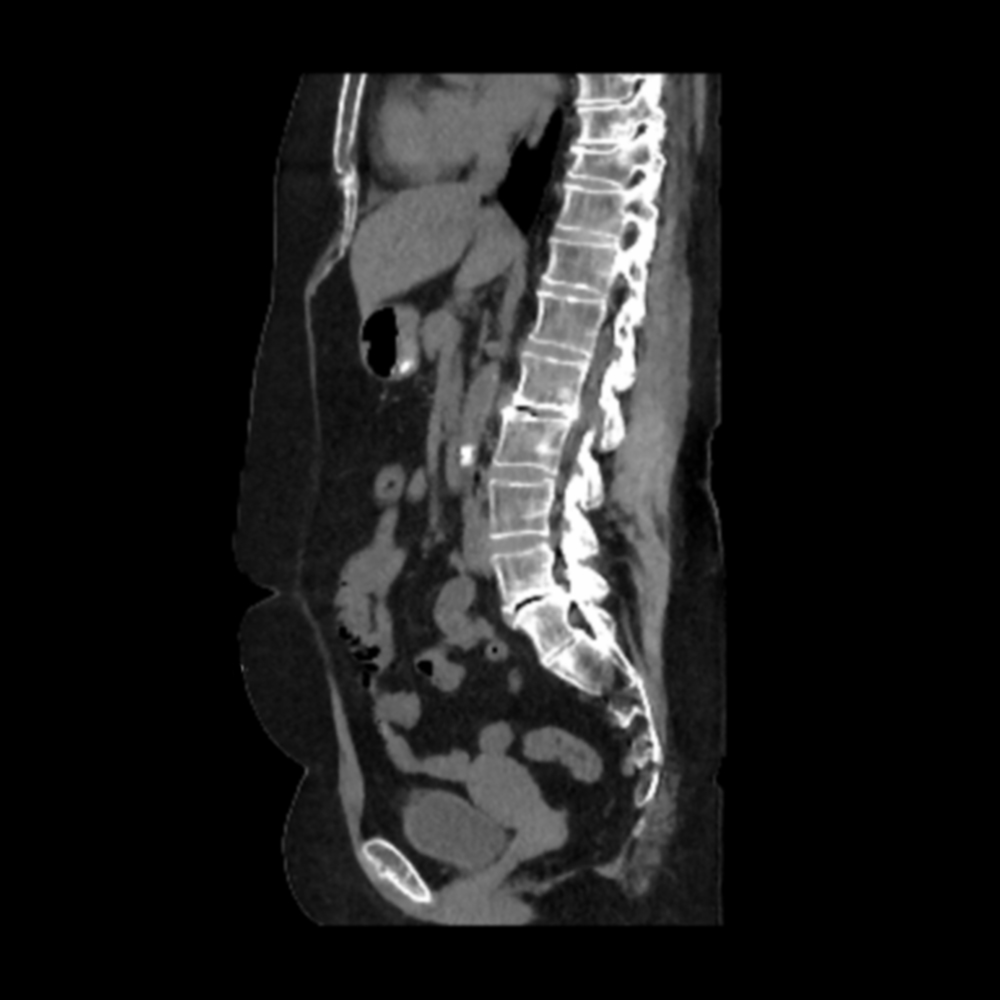

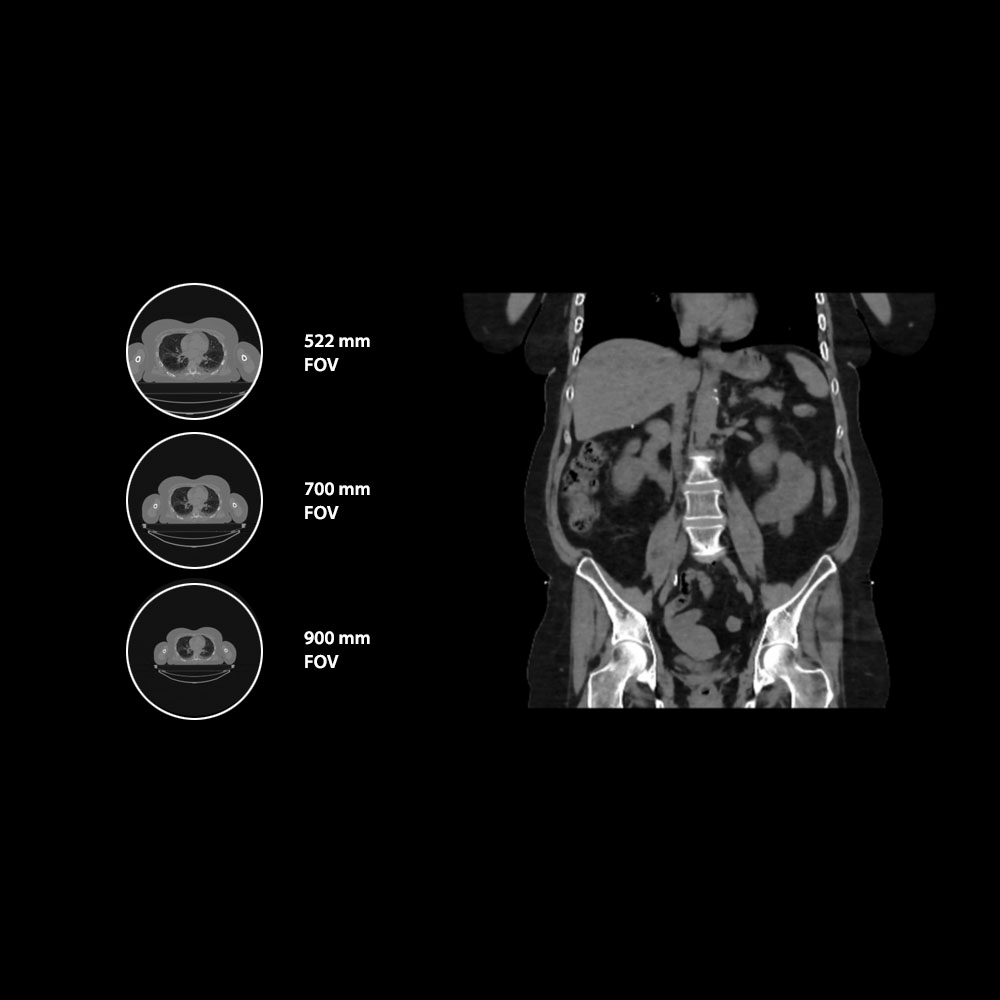

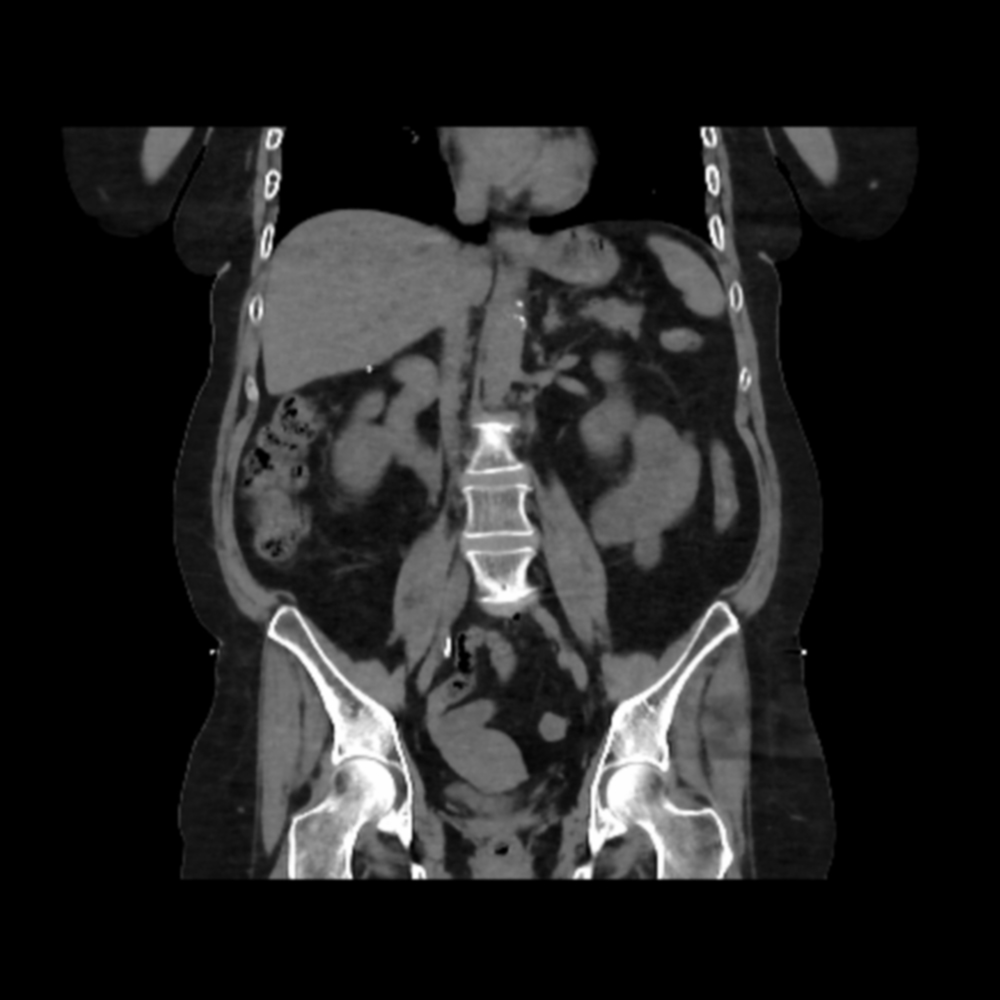

Large FOV prevents truncation of patient anatomy by keeping the entirety of the patient within the FOV.

View Scan Parameters

HelicalScan Mode Helical
Collimation 0.5mm x 80
kVp 120
Reconstruction AiCE
Scan Range 447.2mm
CTDIvol 11.2mGy
DLP 588.00mGy·cm
Effective Dose 8.8mSv
k-factor 0.015 (AAPM Report 96)
Aquilion Exceed LB Abdominal Carcinoma, AiCE
Aquilion Exceed LB Abdominal Carcinoma, AiCE
Aquilion Exceed LB Abdominal Carcinoma, AiCE
Aquilion Exceed LB Abdominal Carcinoma, AiCE
Aquilion Exceed LB Abdominal Carcinoma, AiCE
Aquilion Exceed LB Abdominal Carcinoma, AiCE
Aquilion Exceed LB Abdominal Carcinoma, AiCE
Aquilion Exceed LB Abdominal Carcinoma, AiCE
× 拡大画像
