Light your day. Color your world.
Aplio i700 Women’s Health is designed to support high-quality imaging and efficient departmental workflow. Crystal-clear images with enhanced resolution and penetration, together with a wide range of advanced tools, provide clinicians with valuable information for confident examinations.
Imaging performance
Reliable performance for confident imaging
Aplio i700 WH model delivers high-quality imaging powered by Canon’s active-matrix technology. Its advanced performance is well suited for demanding clinical environments, including women’s health and fetal medicine applications. From early pregnancy screening to detailed fetal cardiology examinations, the system provides clear and consistent visualization.
iBeam+
The system’s advanced iBeam+ imaging engine utilizes advanced signal processing to control ultrasound beams more precisely and flexibly, making imaging more insightful and robust.
Ultra Wide View
Ultra Wide View, Canon’s proprietary technology, expands the field of view with consistent image quality across the display. When combined with iBeam+, wide-angle imaging is enabled without compromising frame rate.

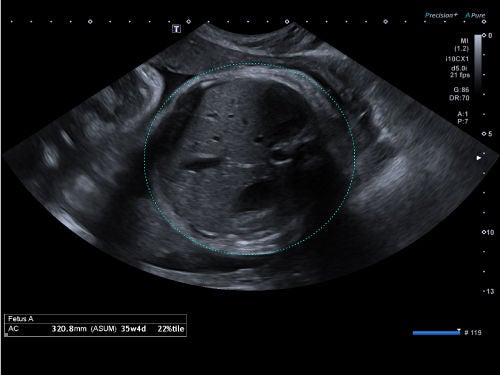

Biometry measurements across the wide range of fetal ages using the high-frequency convex transducer simplified with Ultra Wide View, as seen in this 37 weeks fetus.

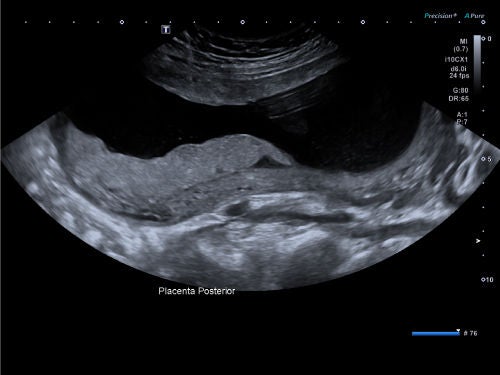

With Ultra Wide View imaging, clinicians gain an expanded field of view for placental assessment, allowing confident localization of the placenta in one frame.

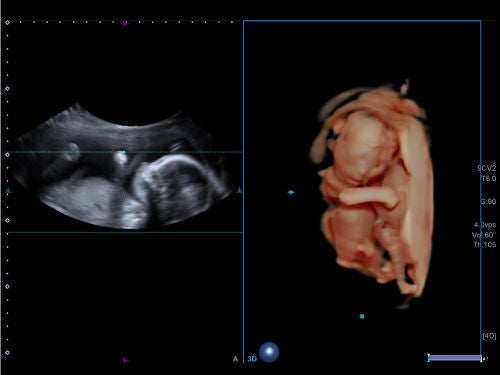

Using Ultra Wide View in 3D mode captures more of the fetal anatomy within one focused frame.
Superb Micro-vascular Imaging (SMI)
Canon’s SMI technology applies advanced processing to visualize a wide range of blood flow signals, including subtle microvascular patterns, with reduced noise and high sensitivity.
From placental cord insertion right to blood flows to the placental edge, SMI highlights subtle microvascular flow patterns.
SMI highlights the detailed branching of the fetal cardiac system, enabling comprehensive fetal hemodynamic assessment.
SMI Angio mode provides clear visualization of even subtle microvascular flow signals.
AI-enabled applications
Simplify processes, increase your efficiency.
Standard Plane Detection
AI-enabled Smart Area Indication applications for OB support the selection of anatomical views for standard measurements, including BPD, HC, AC, and FL, helping improve workflow efficiency and exam consistency.
Automated structure recognition
Once Smart Area Indication OB is enabled, a green light will appear on the screen whenever a standard plane for fetal growth measurements is detected, following commonly used measurement practices for routine mid-trimester fetal ultrasound exams.
Automatic measurement
When freezing the image, a measurement is automatically initiated on the last recognized frame. This may help reduce user-dependent inconsistencies, support workflow efficiency, and serve as a useful teaching tool.

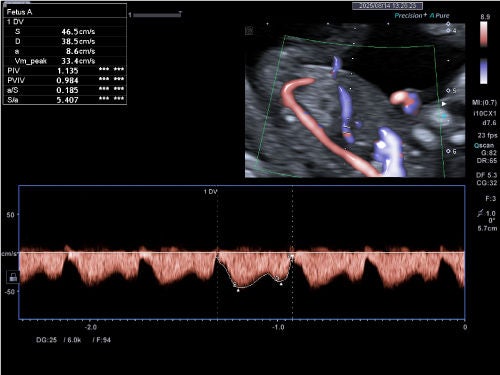

Auto DV measurement
Highly sensitive Advanced Dynamic Flow (ADF) and PW easily shows ductus venosus flow. AI-enabled smooth tracing line automatically adapted over several heartbeats.
*BI-RADS is trademarks of the American College of Radiology.
*AI technology is used at the design stage. The system does not have a self-learning function.
*AI technology is used at the design stage. The system does not have a self-learning function.
Clinical images
Obstetrics

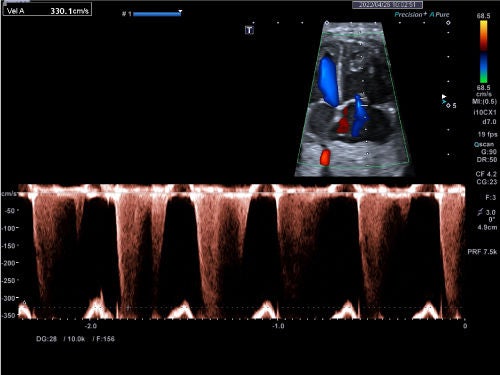

CDI clearly depicts Time Integral (TI) with high velocities by Pulsed Wave Doppler (PWD).

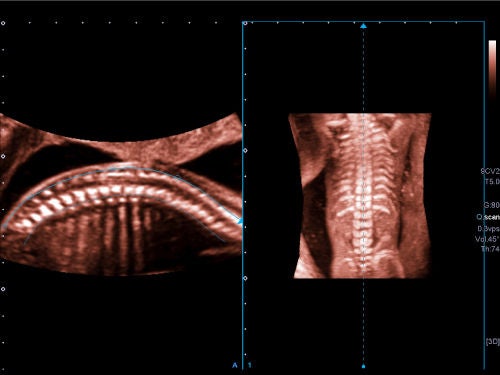

3D OmniView allows for a quick and intuitive display of the fetal spine and ribs.

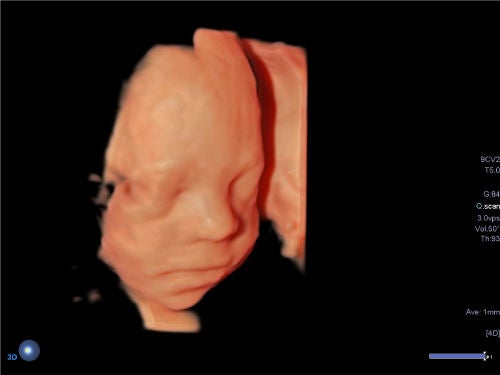

Volume rates are high enough to capture even small changes in fetal expression.
Gynecology

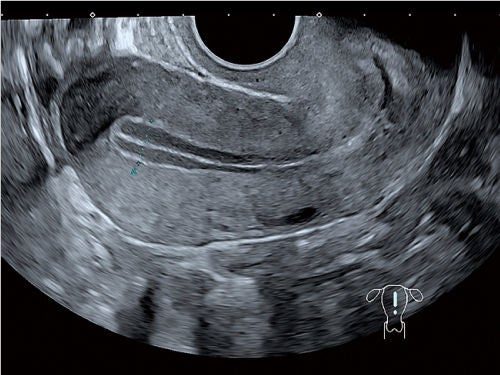

Good contrast and homogeneous image with precise lining of the endometrium.

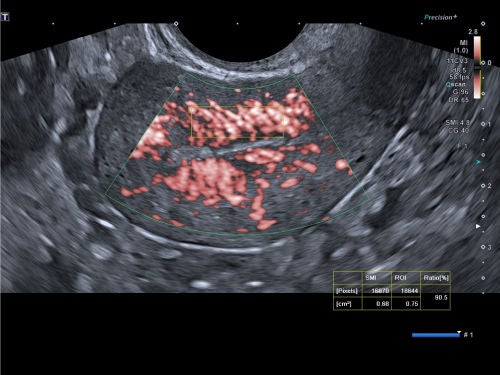

Highly sensitive SMI shows comprehensive vascularization of myometrium with Vascular Index measurement.

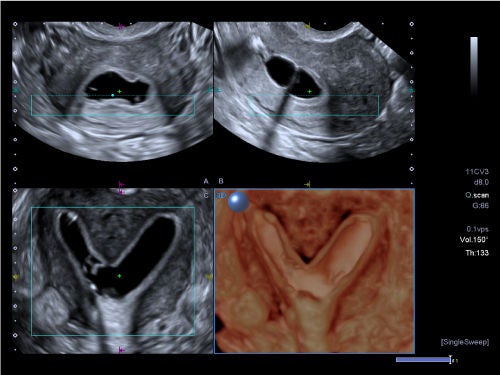

3D imaging in combination with a saline injection showing a septate uterus with some adhesions.
Breast

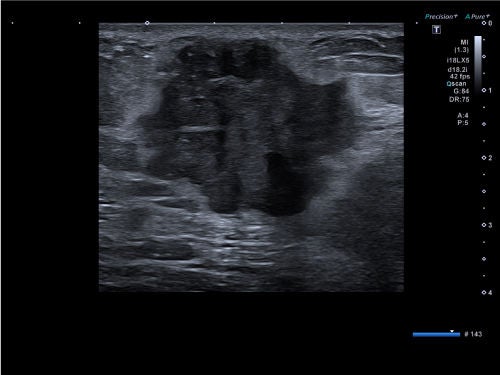

B-mode provides high resolution for lesion border evaluation.

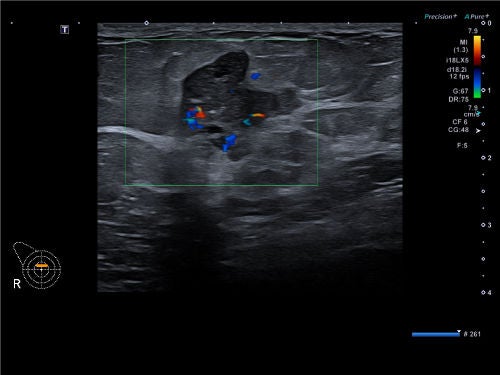

Sensitive CDI and excellent B-mode with active matrix in this complicated target.

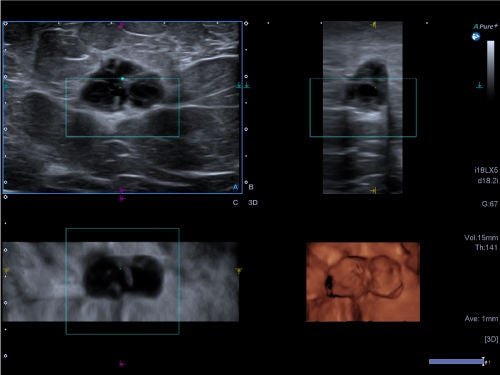

Smart 3D using the high-resolution matrix transducer offers a quick, comprehensive, multiplane overview.
Assisted reproduction

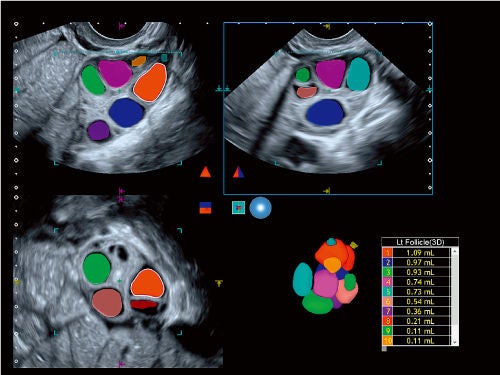

The selected structure is highlighted both in the report and in the volume render.

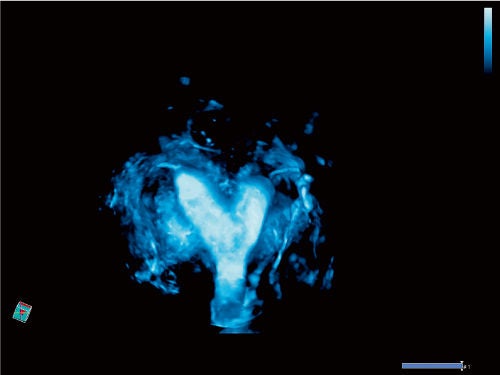

Blocked fallopian tubes, a common infertility cause, are assessed during HyCoSy/HyFoSy procedures.

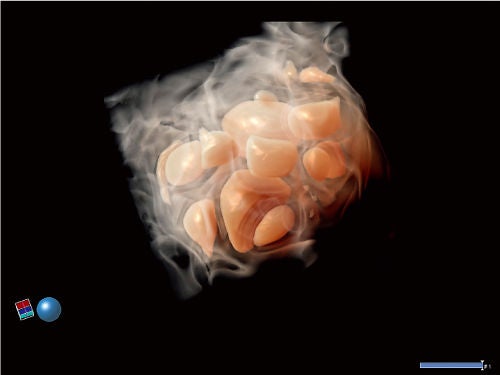

Shadow Glass 3D imaging streamlines complex anatomy evaluation.

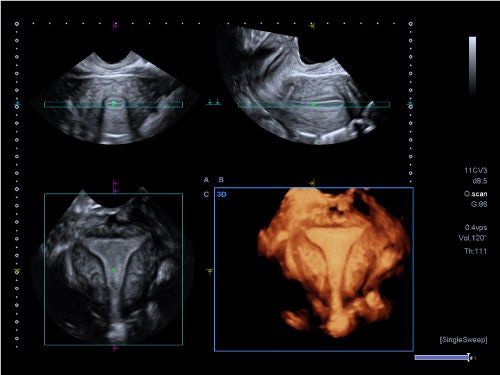

Multi planar reconstructions assisting with quick endometrial cavity assessment.

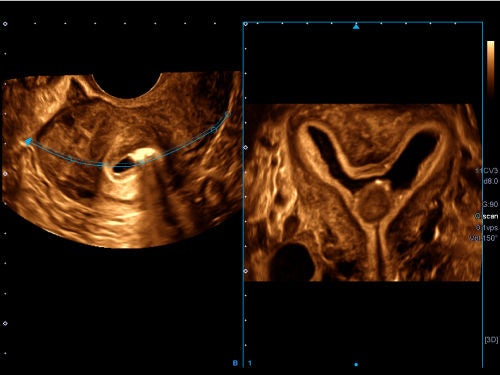

Using Omniview, a single tailored cut line can be drawn in any plane, to clearly visualize and assist with complex anatomy assessment.

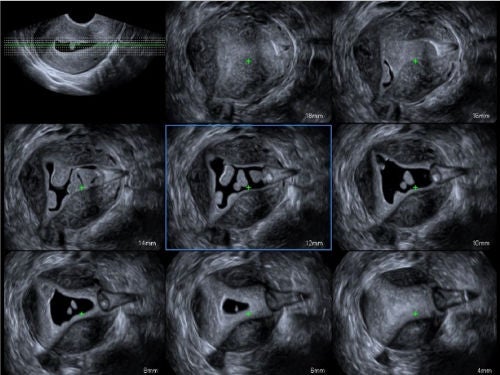

Sequential, multiple slice visualization through a single plane available with 3D imaging, all in one frame.
Productivity
Create your ideal workplace

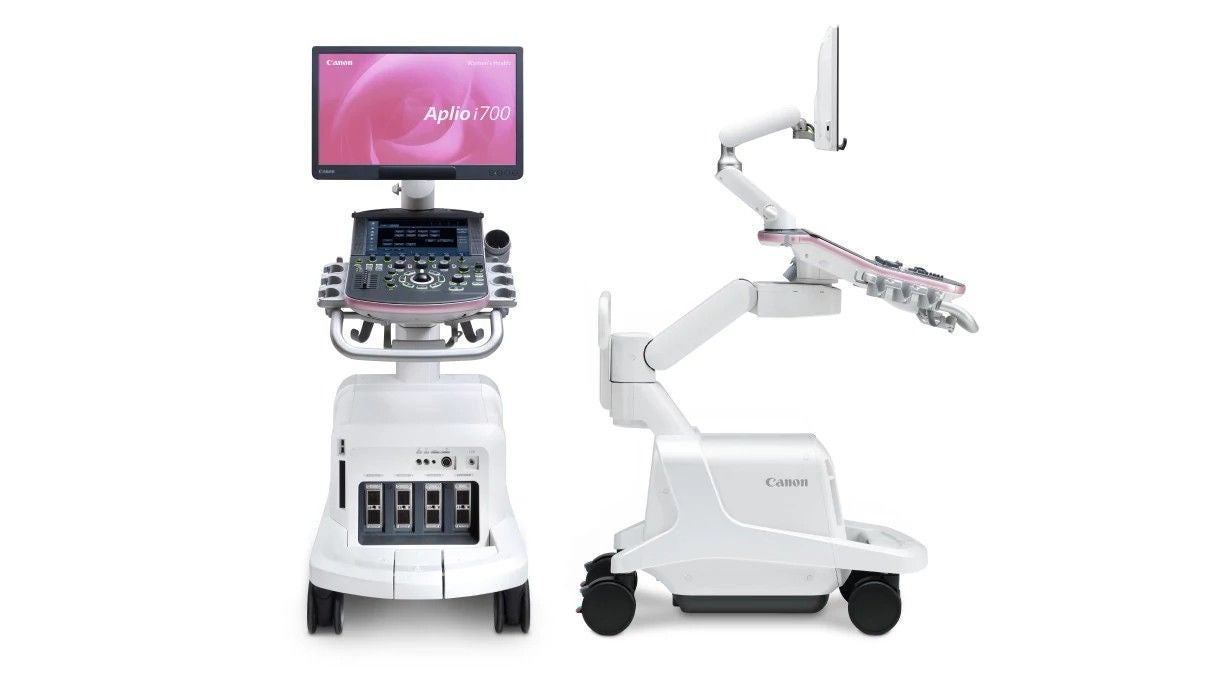

Aplio i-series can be easily and quickly adapted to enable a comfortable, patient-oriented scanning position.
Enjoy optimal mobility
Small and light, Aplio i-series is easy to maneuver and simple to set up ergonomically for any scanning situation.
Applications/Transducers
Applications
Canon’s advanced applications are designed to enhance imaging performance across a wide range of women’s health needs. From high-resolution neurosonology and fetal echocardiography to comprehensive pelvic assessments and streamlined breast imaging tools, Aplio provides clarity, versatility, and smooth integration into everyday practice.

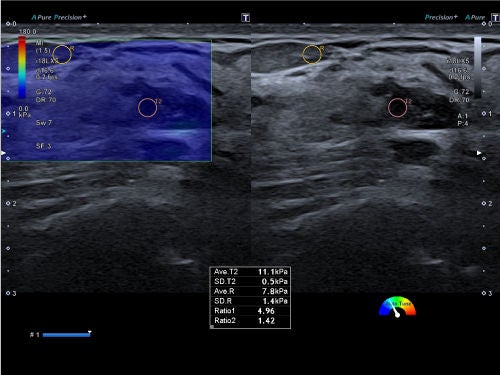

Shear Wave Elastography (SWE)
Provides a numerical indicator and real-time display of tissue elasticity in a variety of clinical settings ranging from small parts examinations to the cervix.

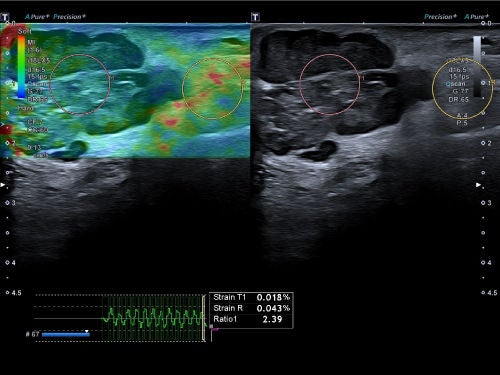

Strain Elastography
The comprehensive strain elastography suite, featuring raw data capability, may support clinicians in evaluating and localizing palpable breast targets in daily practice.

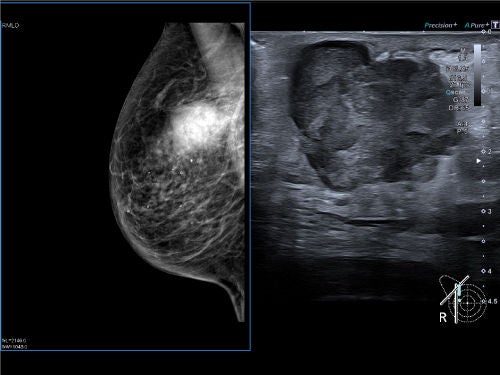

Breast Scan Guide
Designed to work in conjunction with digital mammography, supporting accurate positioning overlay from DICOM data onto body marks in Reference mode.

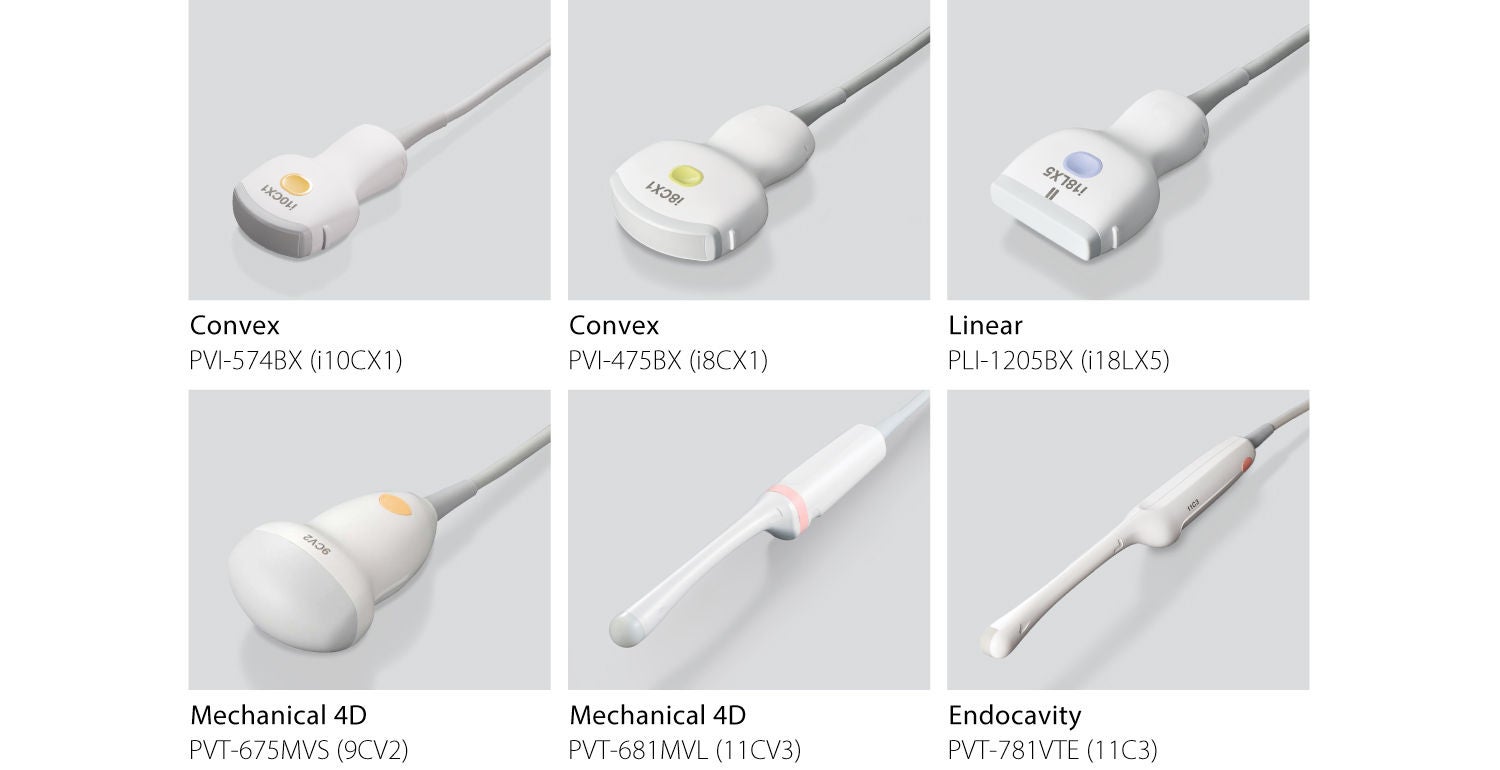

Transducers
At Canon we develop, design and manufacture the core imaging components of our industry-leading ultrasound equipment in-house to ensure that soft and hardware work perfectly in sync to provide clinical and economic value to our customers and their patients.

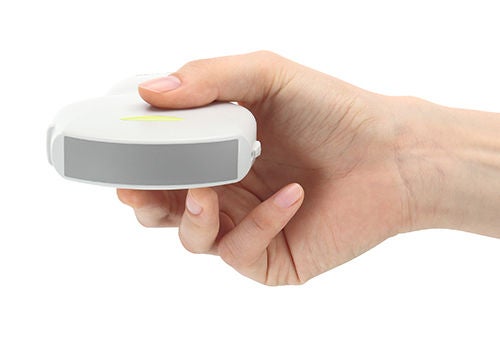

Single crystal
Aplio connects to a range of transducers that use single crystal technology to provide better visualization and improved penetration of up to 50 cm, so you can better manage your hard-to-image patients.

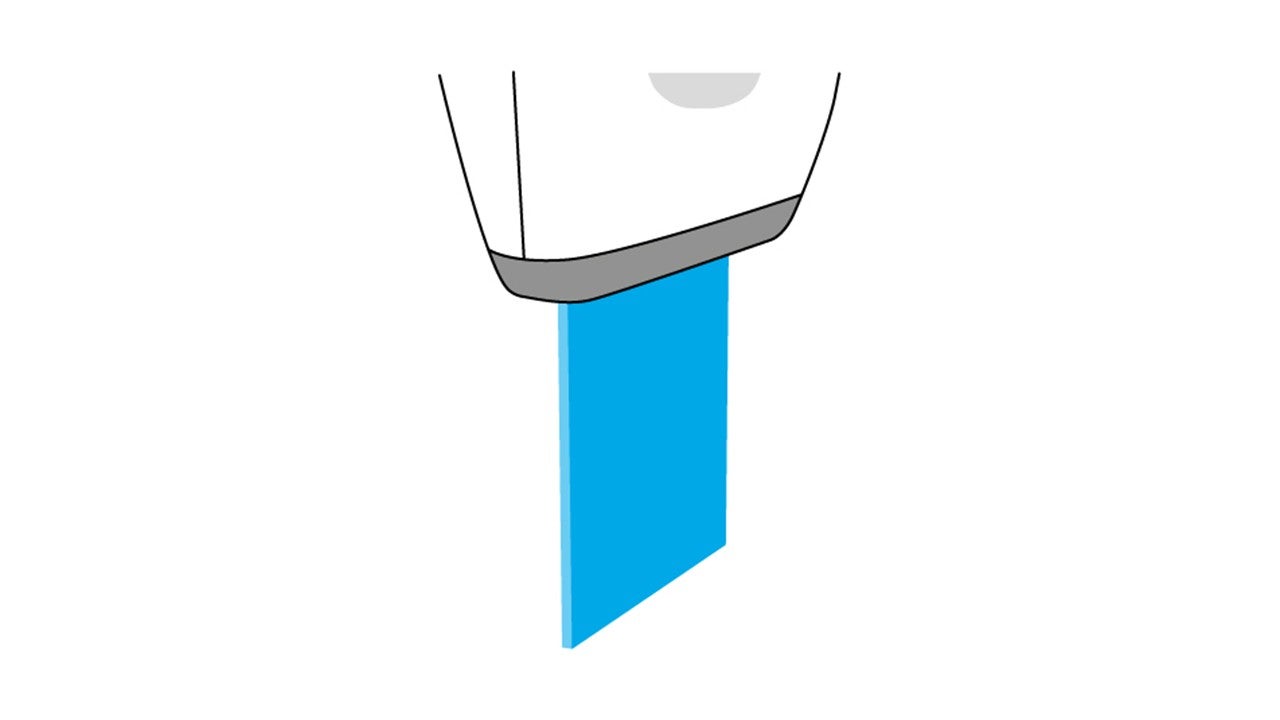

iDMS matrix technology
Aplio's intelligent Dynamic Micro-Slice (iDMS) matrix technology sharpens ultrasonic beams in the elevation direction to create a thin slice beam with continuous focus from the near to the far field.

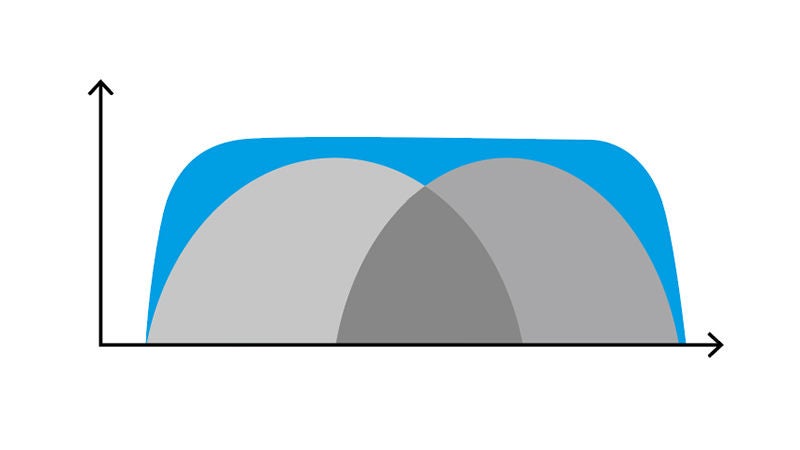

Wideband transducers
Aplio's wideband transducers provide high sensitivity and resolution for both near and far field. The ability to use one transducer across a wider range of patient types can potentially reduce cost, while providing enhanced imaging.
Remote connection
Connect, collaborate and communicate
Equipped with a comprehensive portfolio of intuitive documentation, storage, post-processing and remote communication options, Aplio beyond can help you keep your workday productive, efficient and collaborative.
Remote connection
Need expert advice? Or want to share some findings with peers?
With Canon's optional ApliGate solution you can interact securely – right from your workplace.
Cloud services
The system's Tricefy** option gives you direct access to cloud-based communication, image management and documentation. With Tricefy, you can instantly share medical images and reports with referring doctors and patients.
Remote support
Connecting Aplio with Canon’s InnerVision remote support is simple, safe and provides you with a wealth of benefits that you’ll be able to enjoy directly at your system.
**Requires an additional third-party subscription and may not be available in all regions.
