Refine and redefine intervention using our High Definition technology

The time has come to visualize complex and intricate anatomy with a level of detail you never thought possible. Canon Medical’s Hi-Def imaging1 mode allows you to effortlessly zoom the image up to 1.5 inches at 76 micron resolution without losing image quality, helping clinicians visualize fine details, anatomical structures and deploy devices with accuracy and confidence. Discover clinical advantages now available on the world’s first 12" × 16” True Hi-Def Detector for Interventional Radiology (IR), Oncology (IO), Neurology (IN), and Cardiology (IC).

1:  True Hi-Def imaging with 76 micron pixel modes. Documented testing has demonstrated imaging capability with up to 2.5 times greater spatial resolution than conventional detectors.
12" × 12" detector is available for Alphenix Core +, Alphenix Biplane, and 12" × 16" one is available for Alphenix Core +, Alphenix Biplane. Alphenix Sky +, Alphenix 4D CT.

See more, Do more with Less Using High-Definition (Hi-Def) Technology

Experience the visualization like never before with the world's first high definition mode for universal/ multi-use/interdepartmental purposes.

Learn more about Hi-Def Technology

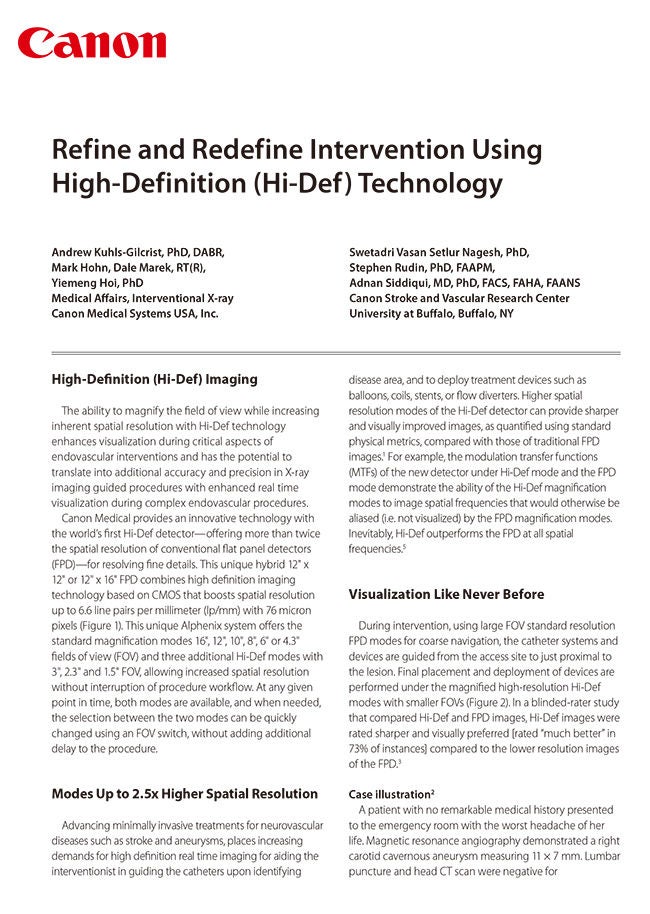

Refine and Redefine Intervention Using High-Definition (Hi-Def) Technology

The latest clinical data shows that the enhanced visualization on offer can result in reducing both procedure time and the overall exposure dose required. It really is the best of both worlds: additional Hi-Def modes with consistent low dose performance.

Read white paper

Redefine Lower Extremity Intervention with High Definition (Hi-Def ) Imaging

The new Alphenix family of interventional systems equipped with Hi-Def imaging helps clinicians see fine details with clarity and precision during interventional procedures

Andrew Kuhls-Gilcrist, PhD, DABR, Dale Marek, RT(R), Mark Hohn, Yiemeng Hoi, PhD Medical Affairs, Interventional X-ray, Canon Medical Systems USA, Inc.

Read case study

Initial experience using a novel high definition (Hi-Def) imaging system in peripheral arterial interventions

A newly developed high definition (Hi-Def) detector allows imaging with a resolution of 76 microns – more than twice that of standard technologies. This unique system consists of a conventional flat-panel detector (FPD) with embedded high-resolution modes, and is the first technology of its kind to help guide peripheral interventions.

“Our initial experience using a novel Hi-Def imaging system shows that it can effectively be used in real-time to improve visualization of lower extremity vasculature and interventional devices during complex peripheral arterial interventions and may be used to improve technical outcomes.”

-Salman A. Arain, Steven Napierkowski, Michael Schechter, Wahaj Aman, Richard W. Smalling
 The University of Texas Health Science Center at Houston, Houston, TX

Download PDF

New High-Definition Detector

"All those things which the device does that were impossible to see with conventional flat panel detectors become overly abundant."


- Adnan Siddiqui MD, PhD, FAHA

Vice-Chairman and Professor of Neurosurgery
SUNY University at Buffalo
Director, Neurosurgical Stroke Services, Kaleida Health
CEO&CMO, Jacobs Institute
Play Video

Case study & White papers

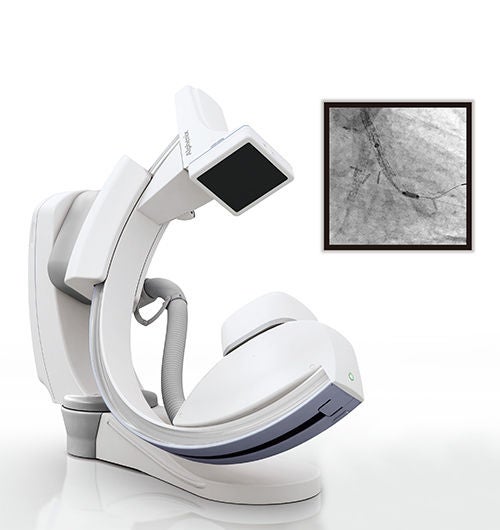

Innovative High Definition (Hi-Def) Imaging System for Complex Interventional Cardiology Procedures

Andrew Kuhls-Gilcrist, PhD, DABR, Dale Marek, RT(R), Mark Hohn, Yiemeng Hoi, PhD Medical Affairs, Interventional X-ray, Canon Medical Systems USA, Inc.
Read case study
Redefine Lower Extremity Intervention with High Definition (Hi-Def ) Imaging

Andrew Kuhls-Gilcrist, PhD, DABR, Mark Hohn, Dale Marek, RT(R), Yiemeng Hoi, PhD Medical Affairs, Interventional X-ray, Canon Medical Systems USA, Inc.
Read white paper
Refine and Redefine Intervention Using High-Definition (Hi-Def) Technology

Andrew Kuhls-Gilcrist, PhD, DABR, Mark Hohn, Dale Marek, RT(R), Yiemeng Hoi, PhD Medical Affairs, Interventional X-ray, Canon Medical Systems USA, Inc.

Swetadri Vasan Setlur Nagesh, PhD, Stephen Rudin, PhD, FAAPM, Adnan Siddiqui, MD, PhD, FACS, FAHA, FAANS Canon Stroke and Vascular Research Center University at Buffalo, Buffalo, NY
Read white paper
High Definition Imaging Reduces Procedure Time Without Impacting Patient Dose in Image-Guided Neuro Interventional Procedures.

Swetadri Vasan Setlur Nagesh, MS,PhD, Buffalo, NY (Presenter) Nothing to Disclose
Read article (link to external website)
Single-center experience of using high definition (Hi-Def) imaging during neurointervention treatment of intracranial aneurysms using flow diverters.

Swetadri Vasan Setlur Nagesh1,2, Kunal Vakharia2,3, Muhammad Waqas2,3, Stephan A Munich2,3, Daniel R Bednarek1,2,4, Jason M Davies2,3,5, Kenneth V Snyder2,3, Maxim Mokin6, Stephen Rudin1,2,4,7,8,9, Elad I Levy1,2,3,4, Adnan H Siddiqui 1,2,3,4
Read article (link to external website)
